Adjustment Procedure

Perform a preliminary inspection before any attempt is made to change or correct the wheel alignment factors. Refer to Preliminary Inspection .
Loosen the nuts on the parallel link-to-crossmember bolts.

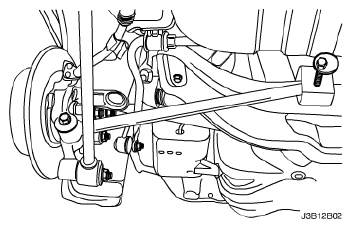

Fig 1: Identifying Nuts On Parallel Link-To-Crossmember Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Rotate the parallel link adjustment bolts until the preferred rear toe specification is obtained. Refer to Wheel Alignment Specifications for preferred specifications.

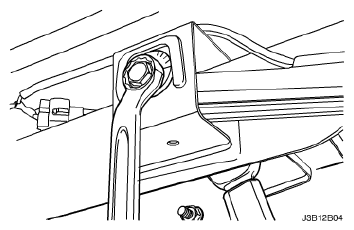

Fig 2: Identifying Parallel Link-To-Crossmember Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Hold the parallel link adjustment bolts and tighten the link-to-crossmember nuts.
Tighten:

Tighten the parallel link-to-crossmember nuts to 90 N.m (66 lb-ft).

Fig 3: Tightening Parallel Link-To-Crossmember Bolt
Courtesy of SUZUKI OF AMERICA CORP.
