Rear Parallel Link Removal and Installation: Removal

  1. Raise and suitably support the vehicle.
  2. Remove the wheel. Refer to WHEEL REMOVAL AND INSTALLATION .
  3. Remove the rear parallel link bolt from the rear crossmember.
  4. Remove the rear parallel link bolt from the rear knuckle.
  5. Remove the rear parallel link.

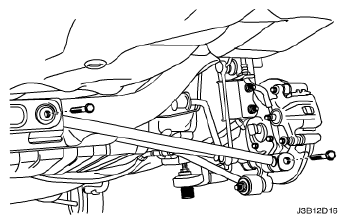

    Fig 1: Removing/Installing Rear Parallel Link Bolts
    G04716866Courtesy of SUZUKI OF AMERICA CORP.
