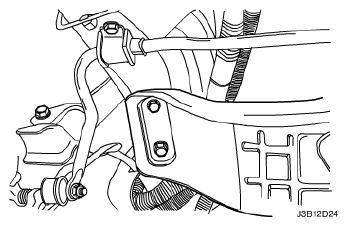

Crossmember Removal and Installation: Installation
- Install the crossmember.
- Install the crossmember-to-body bolts.
Tighten:
Tighten the crossmember-to-body bolts to 112 N.m (83 lb-ft).
- Route and install the rear wheel speed sensor wiring.
- Install the rear parallel link bolt onto the crossmember. Refer to Rear Parallel Link Removal and Installation .
- Install the front parallel link bolt onto the crossmember. Refer to Front Parallel Link Removal and Installation .
- Lower the vehicle.
