Stabilizer Link Removal and Installation: Removal

  1. Remove the stabilizer shaft-to-stabilizer link nut.
  2. Remove the stabilizer link-to-strut assembly nut.
  3. Remove the stabilizer link.

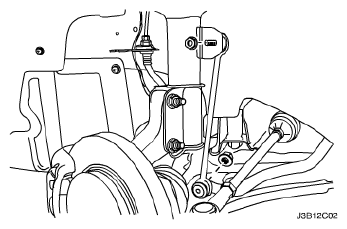

    Fig 1: Identifying Stabilizer Link-To-Strut Assembly Nut
    G04716780Courtesy of SUZUKI OF AMERICA CORP.
