Serpentine Accessory Drive Belt Removal and Installation: Installation

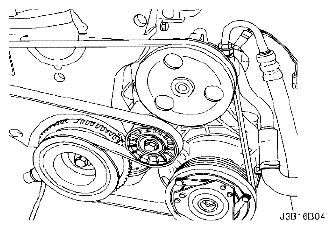

- Use a wrench to turn the tensioner bolt clockwise, compressing the tensioner, and releasing the tension on the serpentine accessory drive belt.
- With the wrench in place on the tensioner bolt, loop the serpentine accessory drive belt loosely over the pulleys.
- Slip the belt over the tensioner.
- Remove the wrench from the tensioner bolt and the belt will tighten itself.

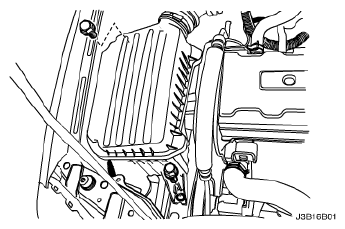

- Install the air filter housing assembly into the vehicle.
- Install the air intake tube and the air filter housing assembly bolts.
Tighten:
Tighten the air filter housing assembly bolts to 6 N.m (53 lb-in).
