Outer Tie Rod Removal and Installation: Removal

Remove the wheel. Refer to WHEEL REMOVAL AND INSTALLATION .
Mark the threads on the inner tie rod to aid in repositioning the adjusting nut.
Remove the outer tie rod nut and disconnect the outer tie rod from the steering knuckle using the ball joint remover KM-507-B.

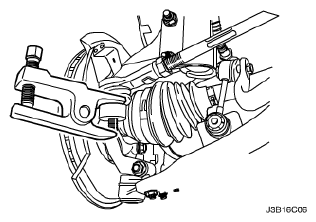

Fig 1: Identifying Outer Tie Rod Nut
Courtesy of SUZUKI OF AMERICA CORP.
Loosen the outer tie rod adjusting nut and remove the outer tie rod by twisting it off the inner tie rod.

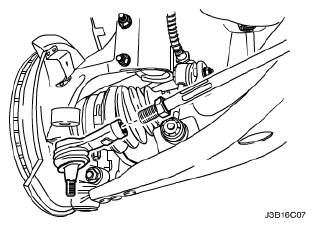

Fig 2: Identifying Outer Tie Rod And Adjusting Nut
Courtesy of SUZUKI OF AMERICA CORP.
