Fluid Reservoir Removal and Installation: Removal

  1. Siphon the power steering fluid from the fluid reservoir.
  2. Loosen the hose clamps and remove both hoses from the fluid reservoir.
  3. Remove the fluid reservoir nuts.

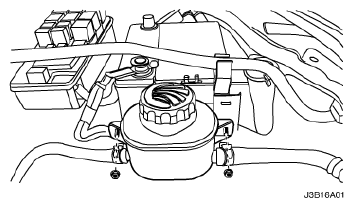

    Fig 1: Identifying Fluid Reservoir Nuts
    G04717707Courtesy of SUZUKI OF AMERICA CORP.
