Dust Boot Removal and Installation: Removal

  1. Raise and suitably support the vehicle.
  2. Remove the wheel. Refer to WHEEL REMOVAL AND INSTALLATION .
  3. Remove the outer tie rod. Refer to Outer Tie Rod Removal and Installation .
  4. Remove the dust boot retaining clamps.
  5. Remove the dust boot.

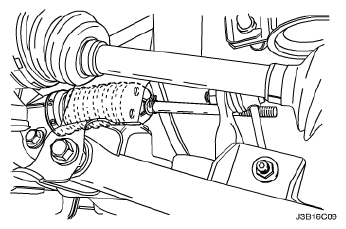

    Fig 1: Identifying Dust Boot
    G04717689Courtesy of SUZUKI OF AMERICA CORP.
