Dust Boot Removal and Installation: Installation

  1. Install the dust boot.
  2. Install the tie rod end dust boot retaining clamp. Install the cylinder end dust boot retaining clamp with the installer KM-J-22610.
  3. Install the outer tie rod. Refer to Outer Tie Rod Removal and Installation .
  4. Install the wheel. Refer to WHEEL REMOVAL AND INSTALLATION .
  5. Lower the vehicle.

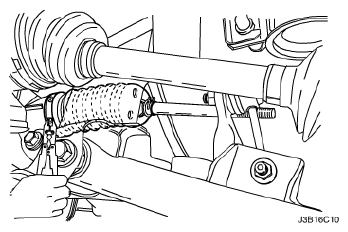

    Fig 1: Installing Tie Rod End Dust Boot Retaining Clamp
    G04717690Courtesy of SUZUKI OF AMERICA CORP.
