Oil Cooler Pipes/Hoses Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Place a drip pan under the hoses to catch the fluid that will run out of the lines.

Disconnect the negative battery cable.
Raise and suitably support the vehicle.
Remove the engine under cover. Refer to ENGINE UNDER COVERS REMOVAL AND INSTALLATION .
Remove the oil cooler outlet pipe bolt from the right lower side of the radiator.
Remove the oil cooler outlet pipe bracket bolt.

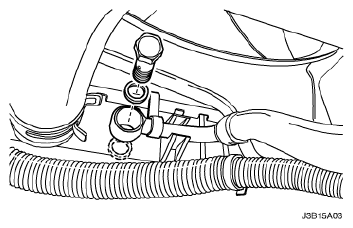

Fig 1: Identifying Oil Cooler Outlet Pipe Bolt On Right Lower Side Of Radiator
Courtesy of SUZUKI OF AMERICA CORP.
Remove the oil cooler outlet pipe bolt from the transaxle side.
Remove the oil cooler outlet pipe assembly.

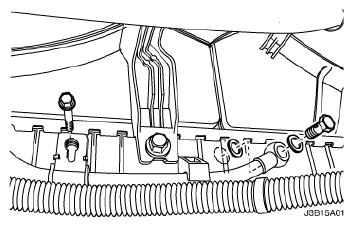

Fig 2: Identifying Oil Cooler Outlet Pipe Bolt On Transaxle Side
Courtesy of SUZUKI OF AMERICA CORP.
Remove the oil cooler inlet pipe bolt from the left lower side of the radiator.

Fig 3: Identifying Oil Cooler Inlet Pipe Bolt On Left Lower Side Of Radiator

Courtesy of SUZUKI OF AMERICA CORP.

Remove the oil cooler inlet pipe bolt from the transaxle side.
Remove the oil cooler inlet pipe assembly.

Fig 4: Identifying Oil Cooler Inlet Pipe Bolt On Transaxle Side
Courtesy of SUZUKI OF AMERICA CORP.
