A/C High-Pressure Pipe Line Installation

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Position the high-pressure pipe into the vehicle.

Fig 1: Identifying High-Pressure Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Install a new O-ring on the pipe at the receiver dryer.
Install the high-pressure pipe-to-receiver-dryer connecting block nut.
Tighten:

Tighten the high-pressure pipe-to-receiver-dryer connecting block nut to 14 N.m (10 lb-ft).

Fig 2: Identifying High-Pressure Pipe-To-Receiver-Dryer Connecting Block Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the high-pressure pipe-to-evaporator flange connecting block retaining nut.
Tighten:

Tighten the high-pressure pipe-to-evaporator flange connecting block retaining nut to 15 N.m (11 lb-ft).

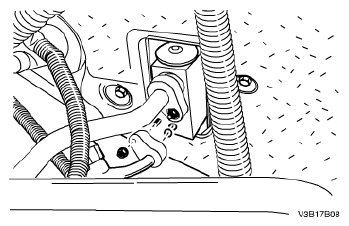

Fig 3: Identifying High-Pressure Pipe-To-Evaporator Flange Connecting Block Retaining Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the nut at the condenser connecting block.
Tighten:

Tighten the condenser connecting block nut to 16 N.m (12 lb-ft).

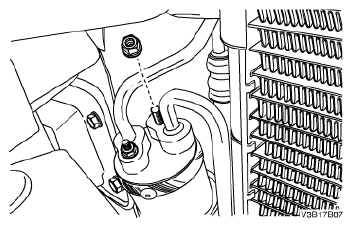

Fig 4: Identifying Condenser Connecting Block Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the nut at the compressor hose connecting block.
Tighten:

Tighten the compressor hose connecting block nut to 38 N.m (28 lb-ft).
Install the bolt and the nut which secure the clamp that hold the high pressure pipe to the vehicle.
Connect the electrical connector to the pressure transducer.
Install the surge tank. Refer to SURGE TANK INSTALLATION .
Connect the negative battery cable.
Evacuate and recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating and Charging Procedures for A/C System .

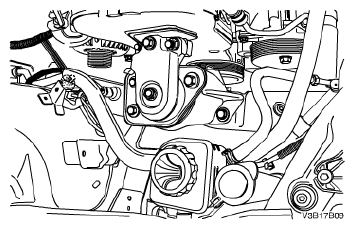

Fig 5: Identifying Compressor Hose Connecting Block & Nut
Courtesy of SUZUKI OF AMERICA CORP.
