Vehicle Lifting Points

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

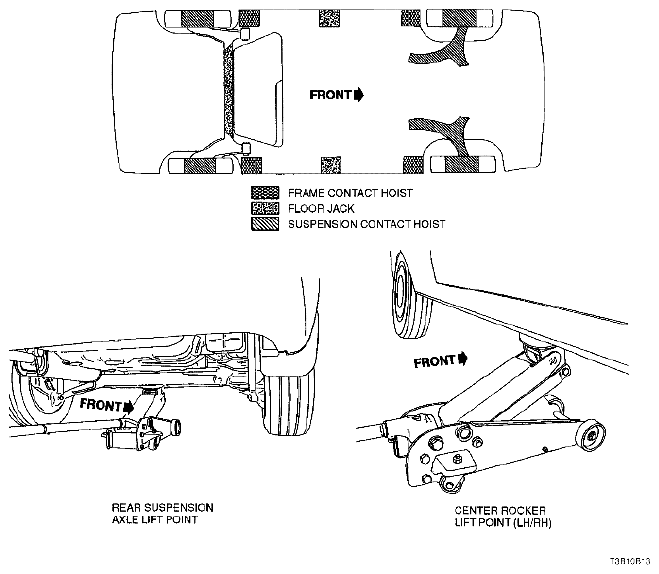

Fig 1: Identifying Vehicle Lifting Points (1 Of 2)
G04718579Courtesy of SUZUKI OF AMERICA CORP.

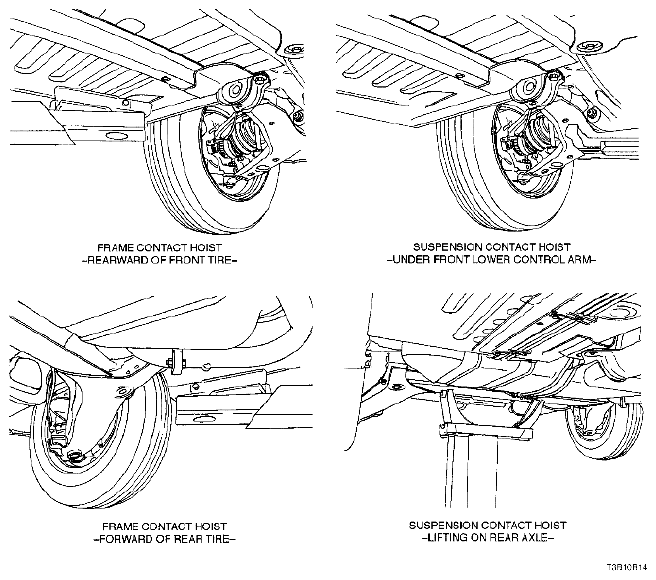

Fig 2: Identifying Vehicle Lifting Points (2 Of 2)
G04718580Courtesy of SUZUKI OF AMERICA CORP.
