Windshield Wiper Arm Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

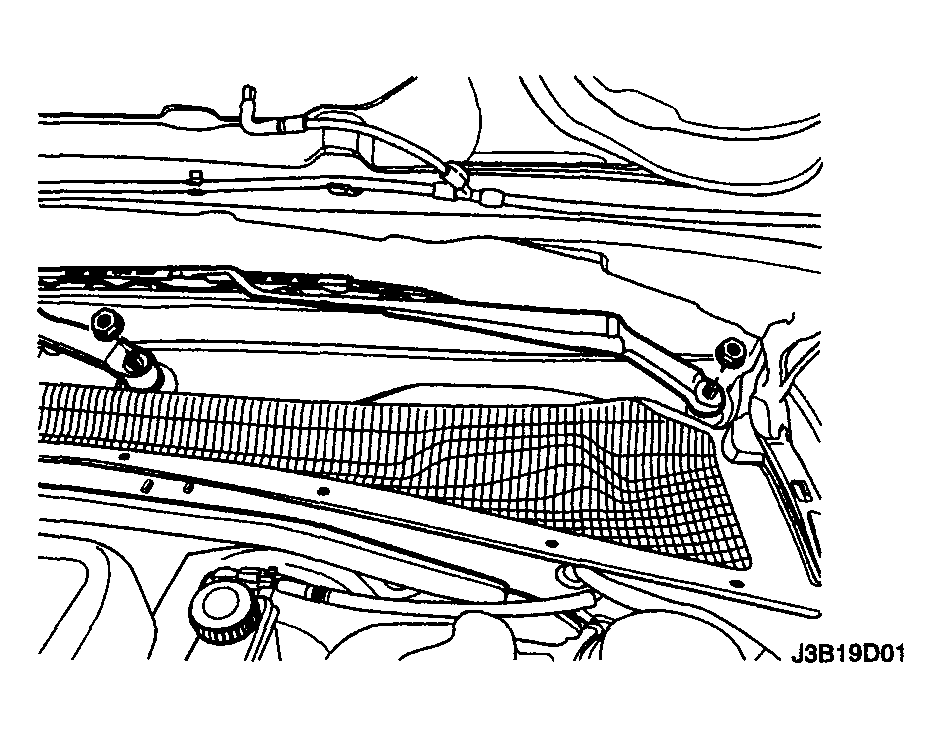

- Install the wiper arm.CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
- Secure the wiper arm with the nut.
Tighten
Tighten the wiper arm nut to 22 N.m (16 lb-ft).
- Install the wiper arm nut cap, if necessary.
- Close the hood.
