Side Outer

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Notchback

Unit: mm (in.)

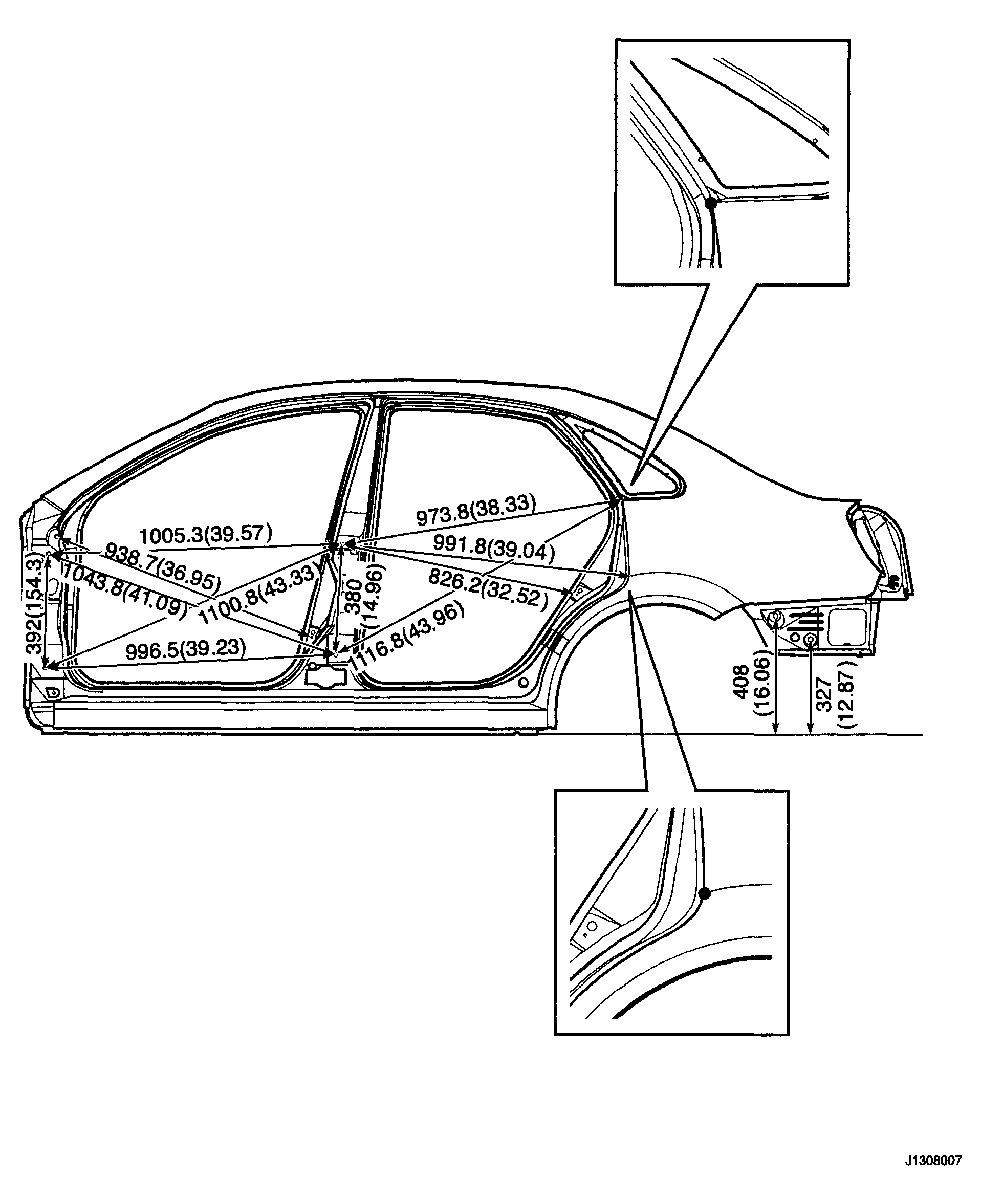

Fig 1: Identifying Notchback Side Outer Body Dimension Specification

Courtesy of SUZUKI OF AMERICA CORP.

Hatchback

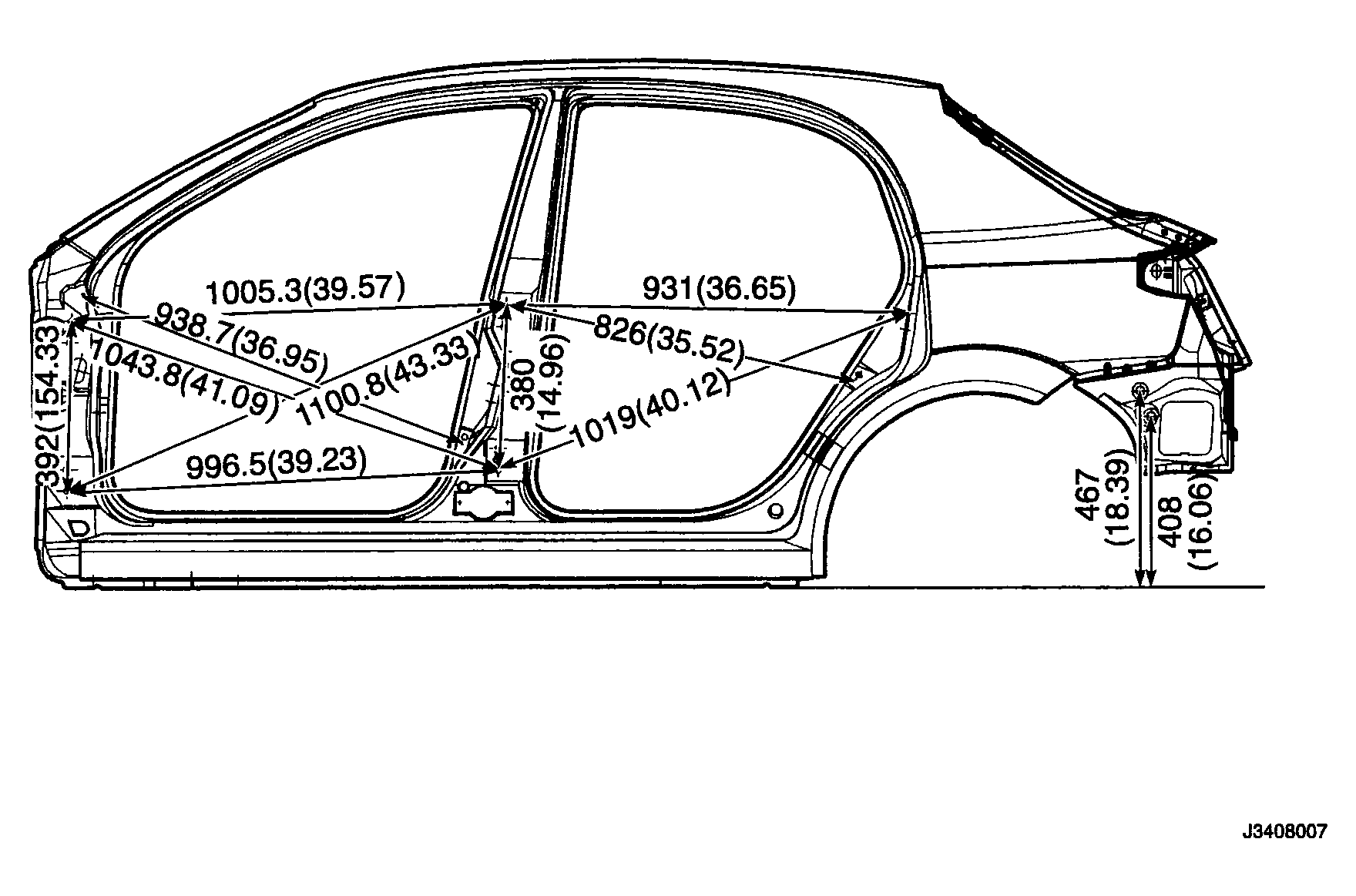

Fig 2: Identifying Hatchback Side Outer Body Dimension Specification

Courtesy of SUZUKI OF AMERICA CORP.

Station Wagon

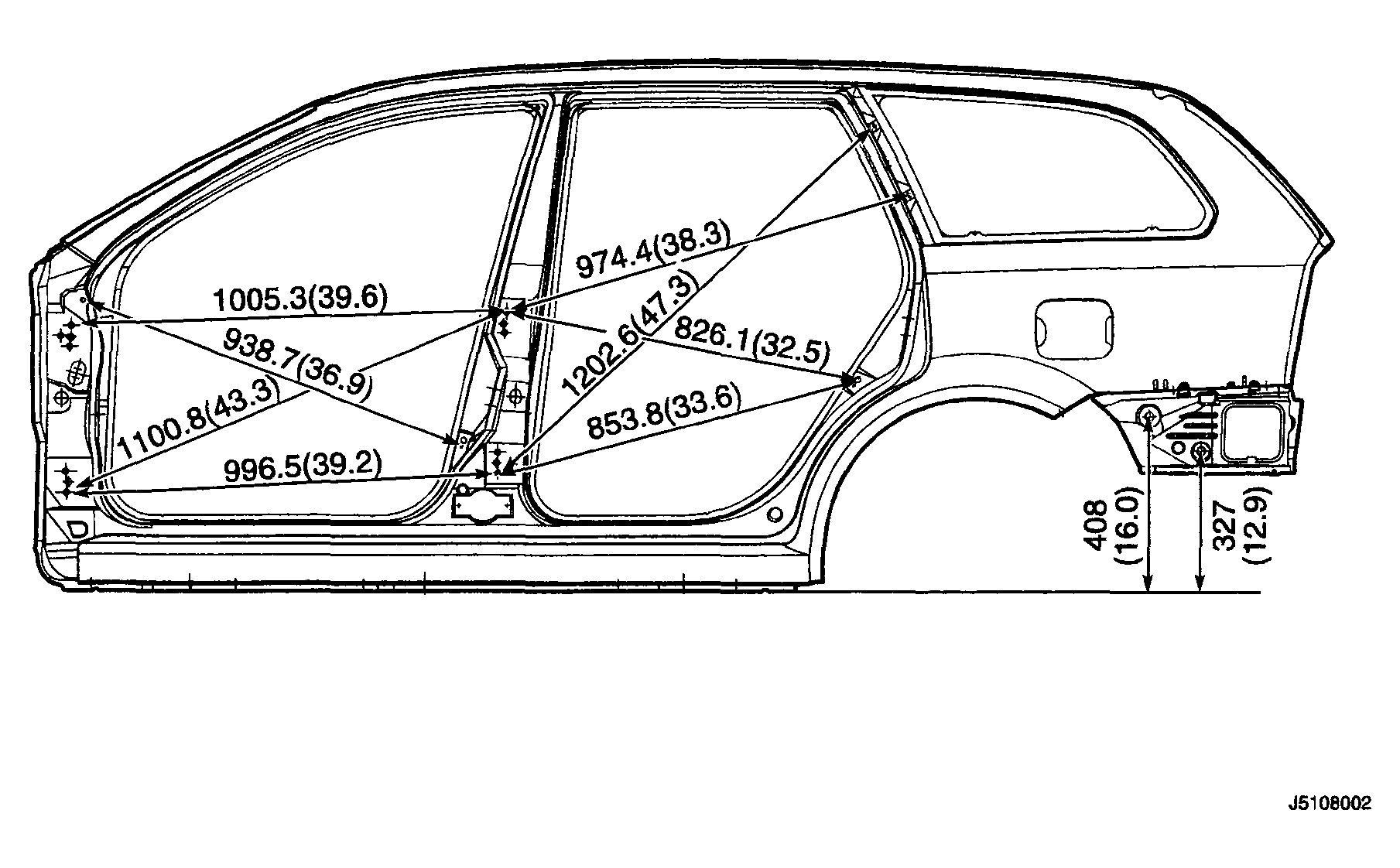

Fig 3: Identifying Station Wagon Side Outer Body Dimension Specification

Courtesy of SUZUKI OF AMERICA CORP.

Inner

Unit: mm (in.)

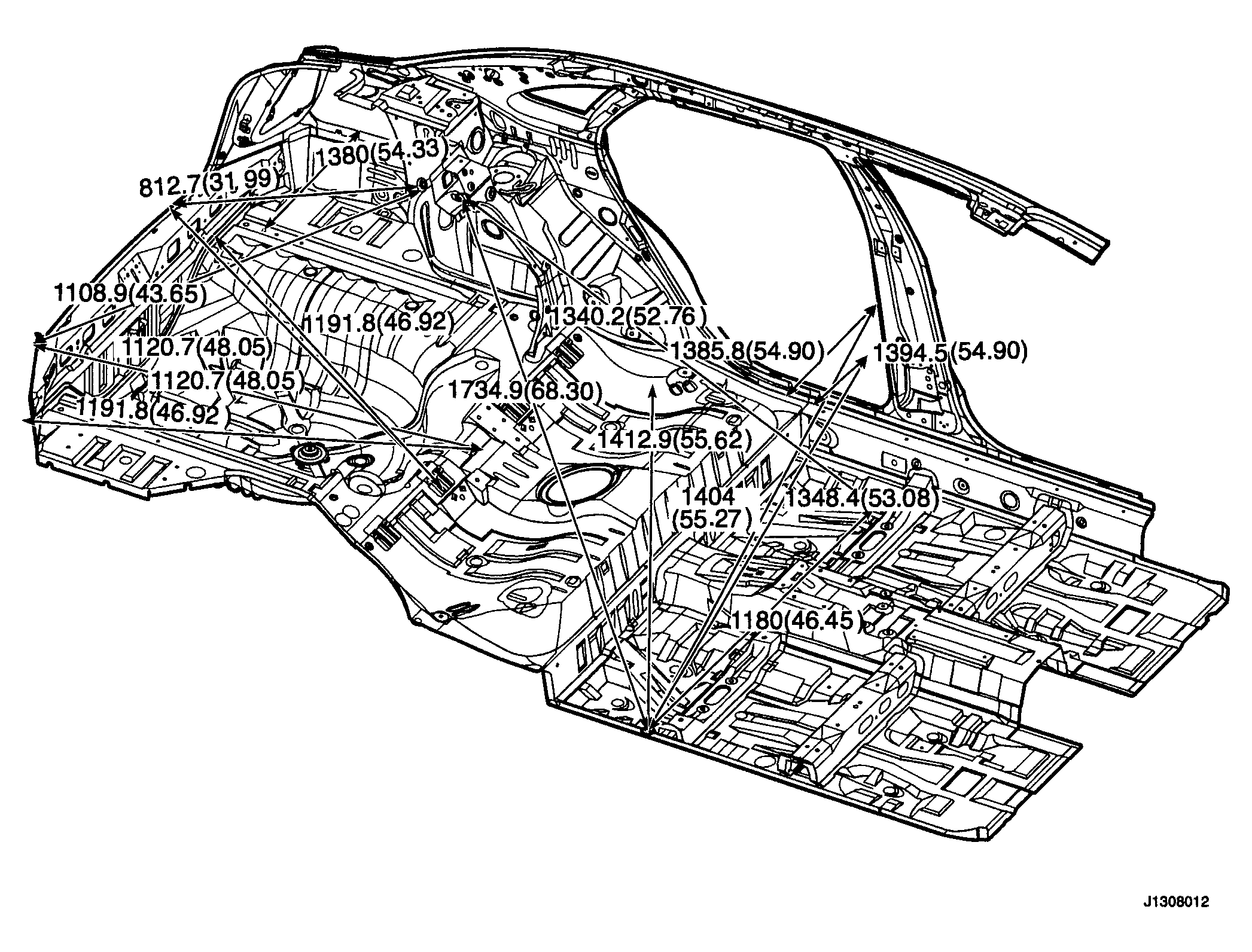

Fig 4: Identifying Inner Side Outer Body Dimension Specification

Courtesy of SUZUKI OF AMERICA CORP.
