Rear Frame

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Notchback/Station Wagon

Unit: mm (in.)

Fig 1: Identifying Rear Frame Notchback/Station Wagon Body Dimension Specification

Courtesy of SUZUKI OF AMERICA CORP.

Hatchback

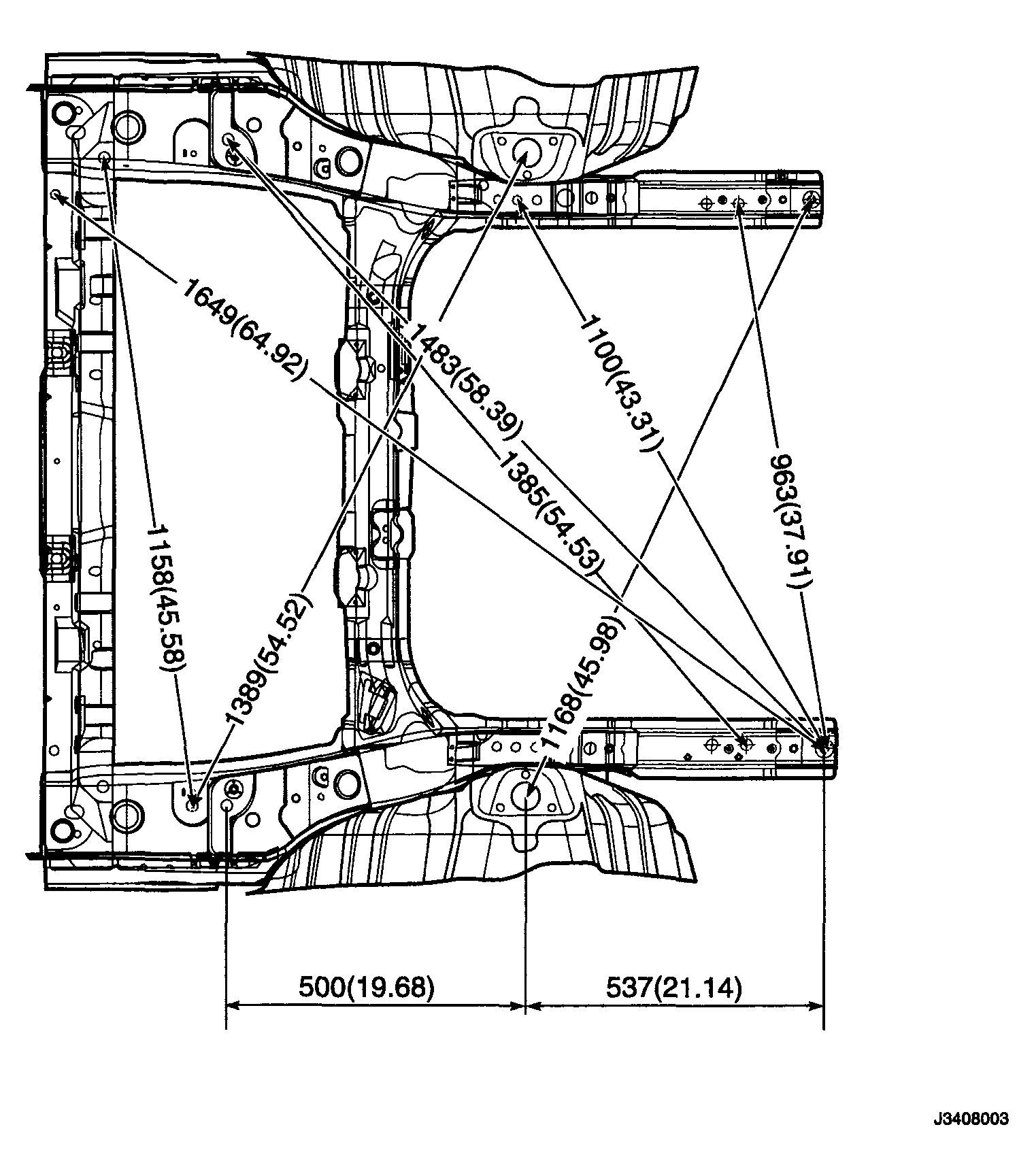

Fig 2: Identifying Hatchback Rear Frame Body Dimension Specification

Courtesy of SUZUKI OF AMERICA CORP.

Front Panel

Unit: mm (in.)

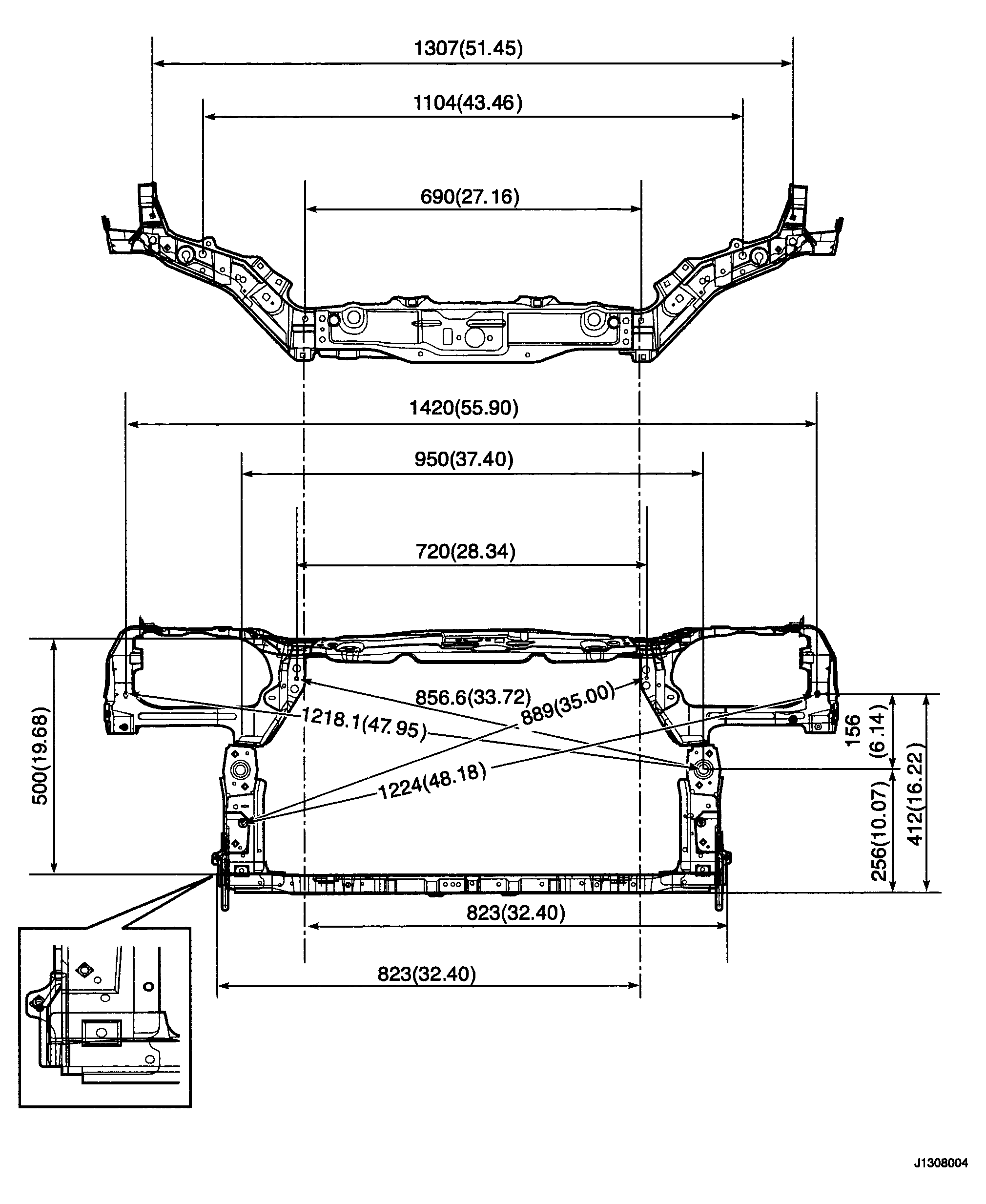

Fig 3: Identifying Front Panel Rear Frame Body Dimension Specification

Courtesy of SUZUKI OF AMERICA CORP.

Engine Room

Unit: mm (in.)

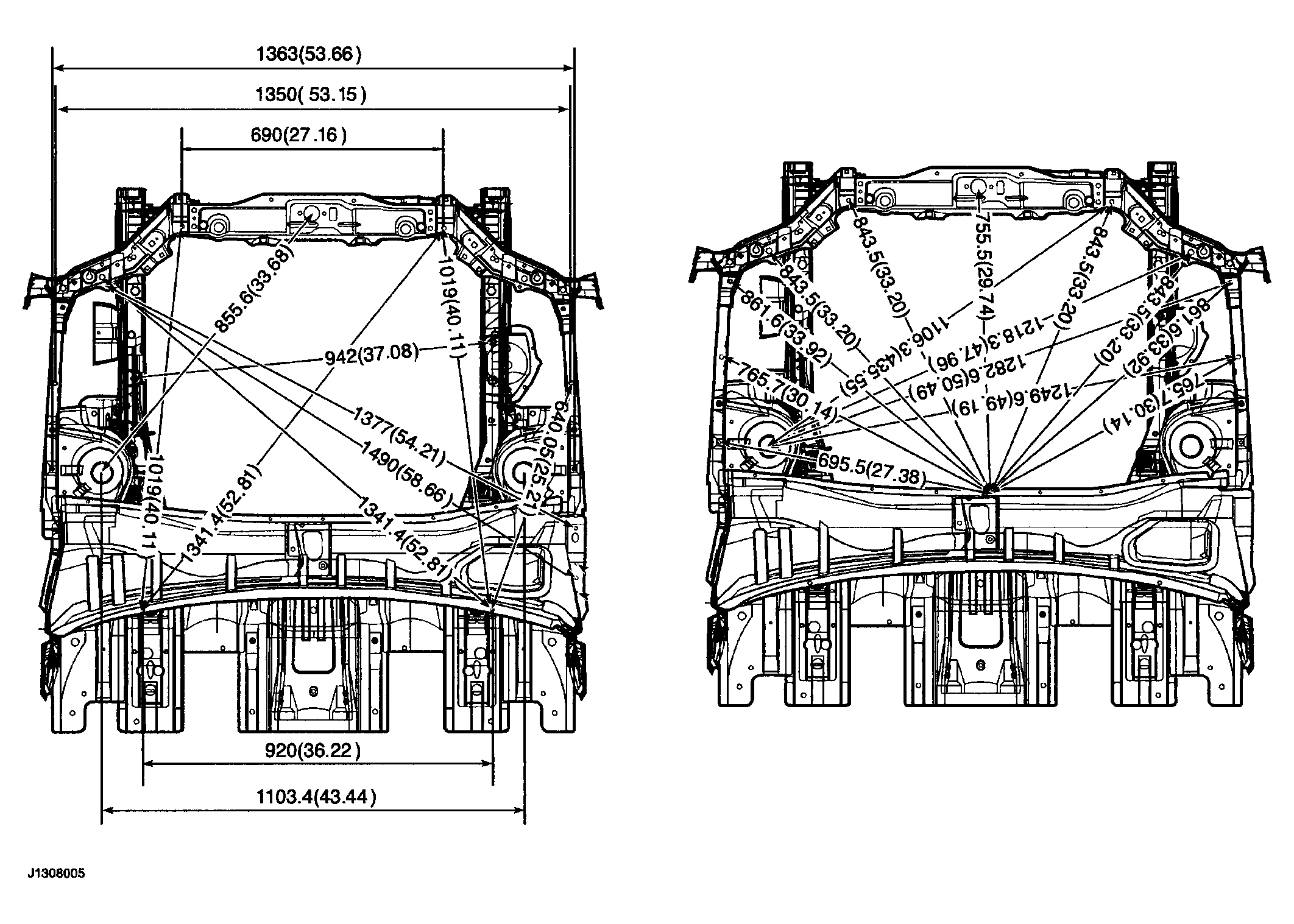

Fig 4: Identifying Engine Room Rear Frame Body Dimension Specification

Courtesy of SUZUKI OF AMERICA CORP.
