Frame Door Opening

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Notchback

NOTE: Reference dimensions show the distance between the designated position and opposite position showing in sketches (Outside to outside).

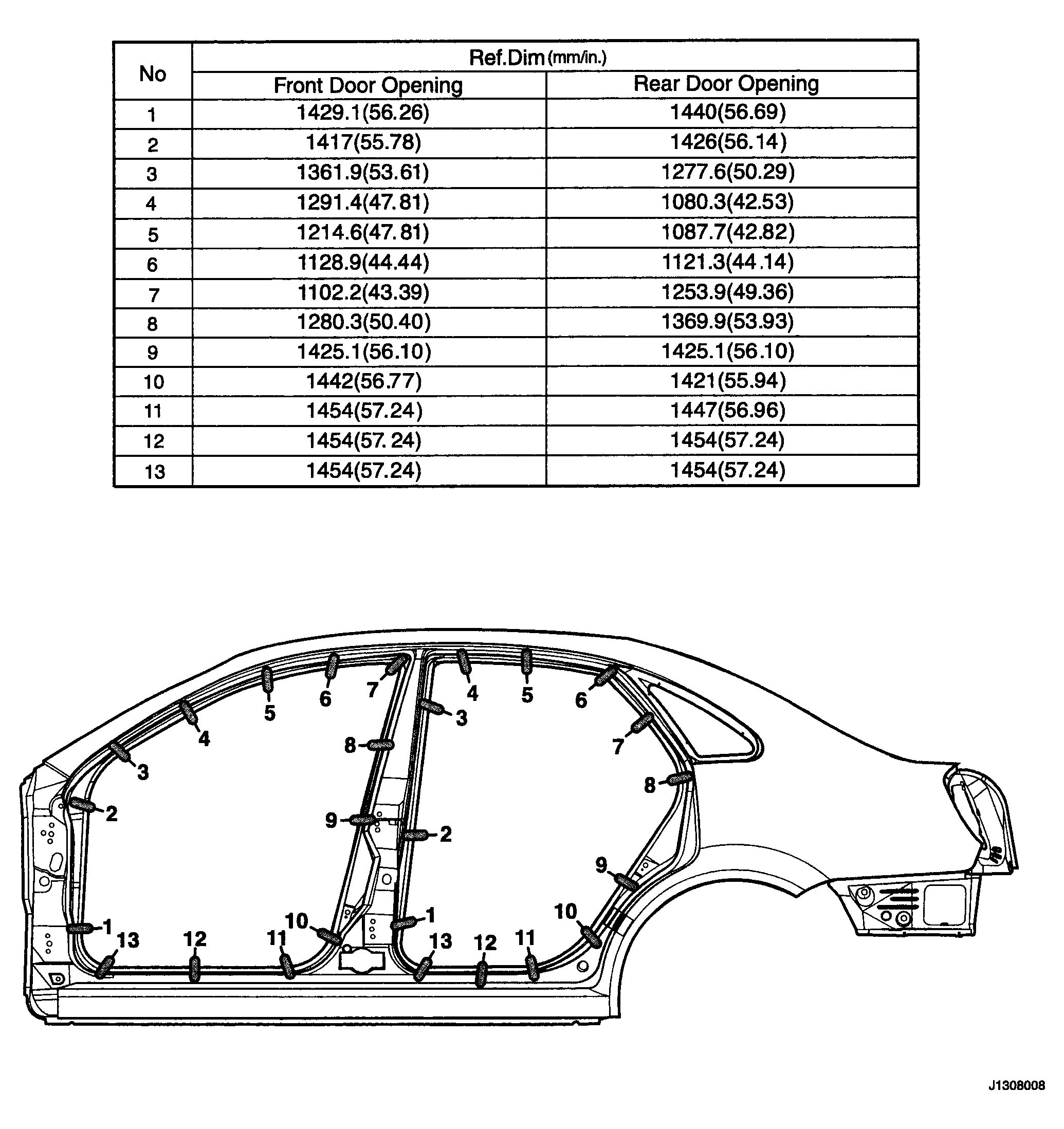

Fig 1: Identifying Notchback Frame Door Opening Dimensions Specification

Courtesy of SUZUKI OF AMERICA CORP.

Hatchback

NOTE: Reference dimensions show the distance between the designated position and opposite position showing in sketches (Outside to outside).

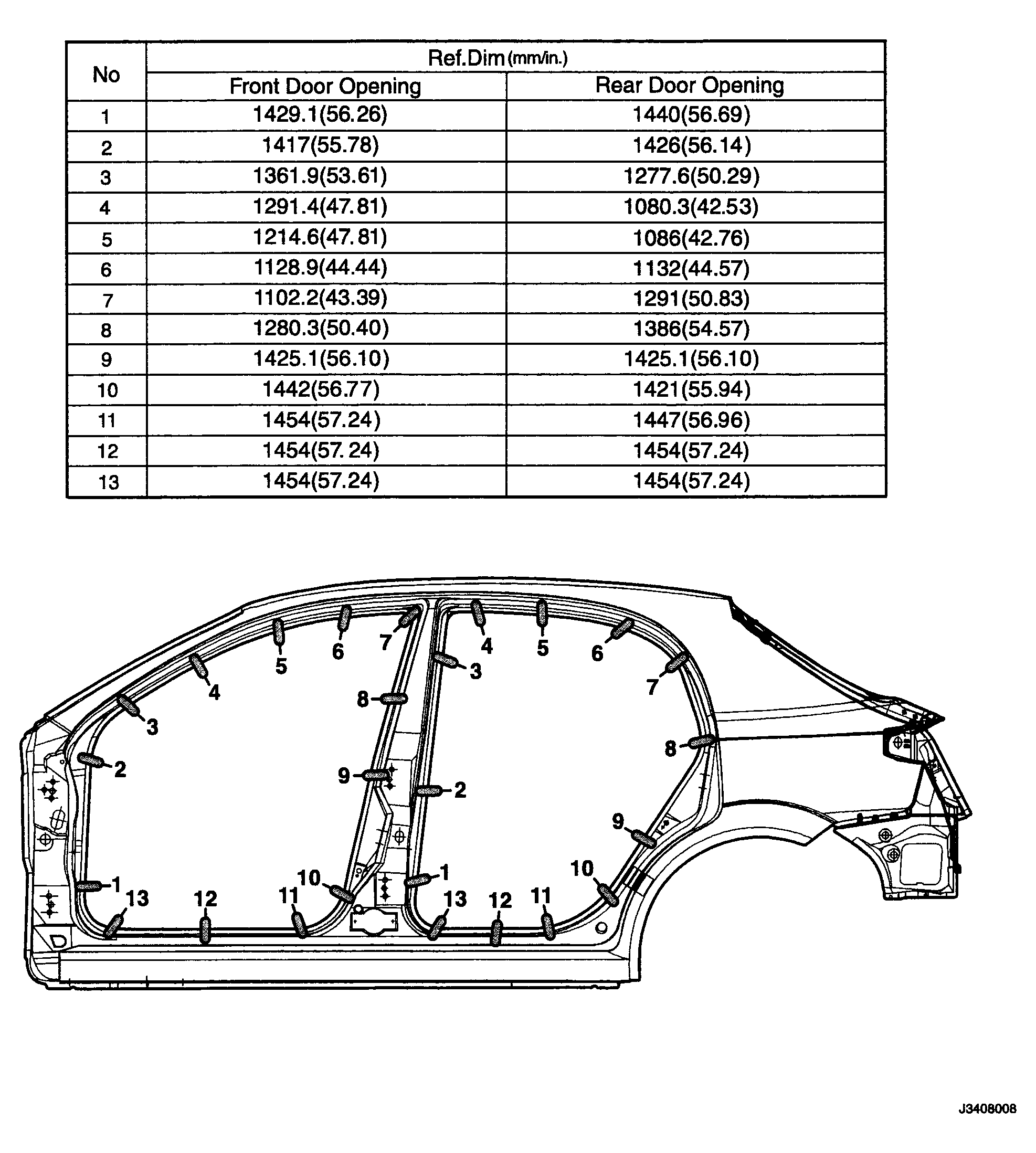

Fig 2: Identifying Hatchback Frame Door Opening Dimensions Specification

Courtesy of SUZUKI OF AMERICA CORP.

Station Wagon

NOTE: Reference dimensions show the distance between the designated position and opposite position showing in sketches (Outside to outside).

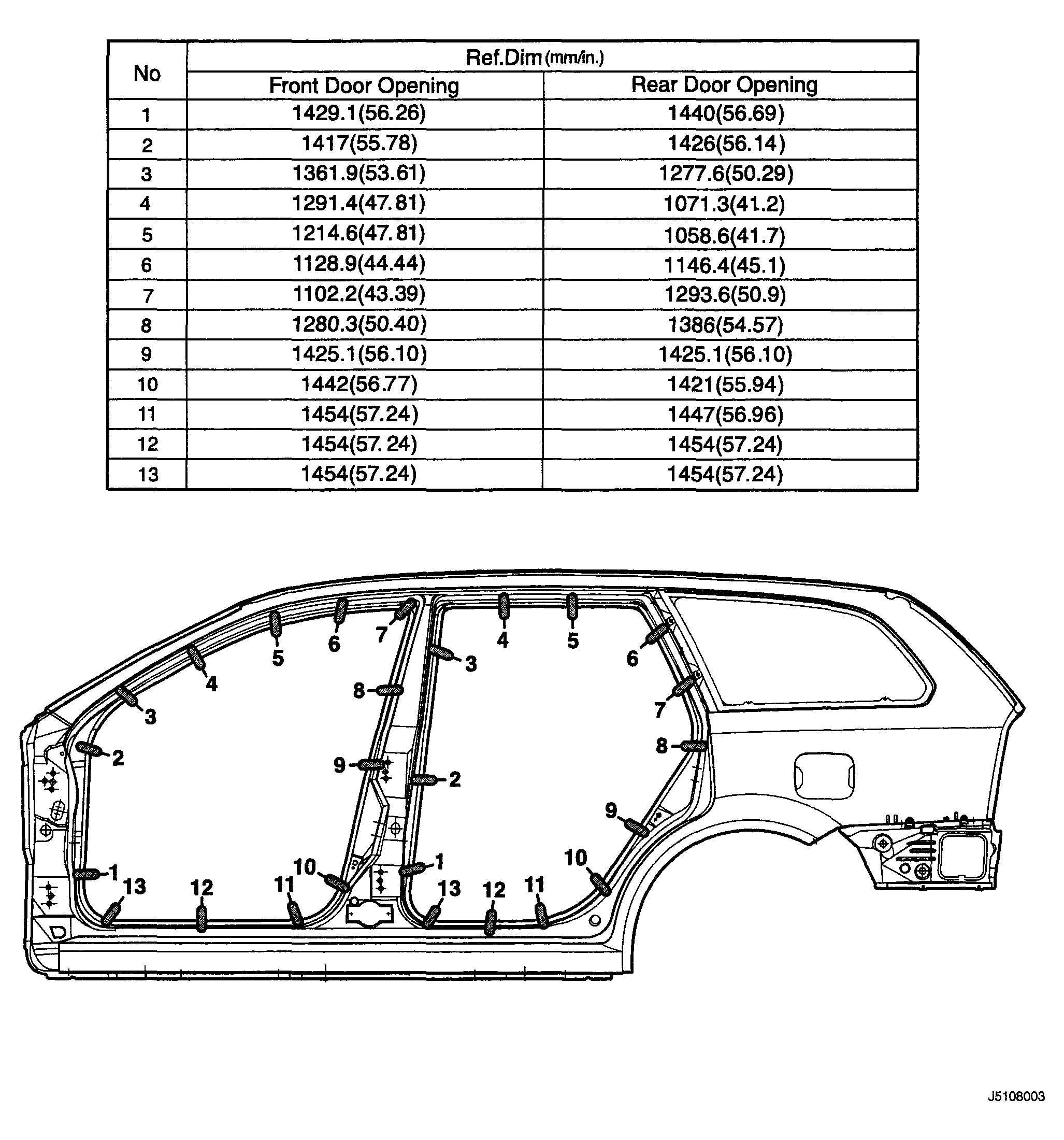

Fig 3: Identifying Station Wagon Frame Door Opening Dimensions Specification

Courtesy of SUZUKI OF AMERICA CORP.
