Front Fog Lamps Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb.
  2. Install the retaining wire.
  3. Install the fog lamp access cover.
  4. Connect the electrical connector.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  5. Install the front fog lamp with the bolts.

    Tighten

    Tighten the front fog lamp bolts to 4 N.m (35 lb-in).

  6. Connect the negative battery cable.

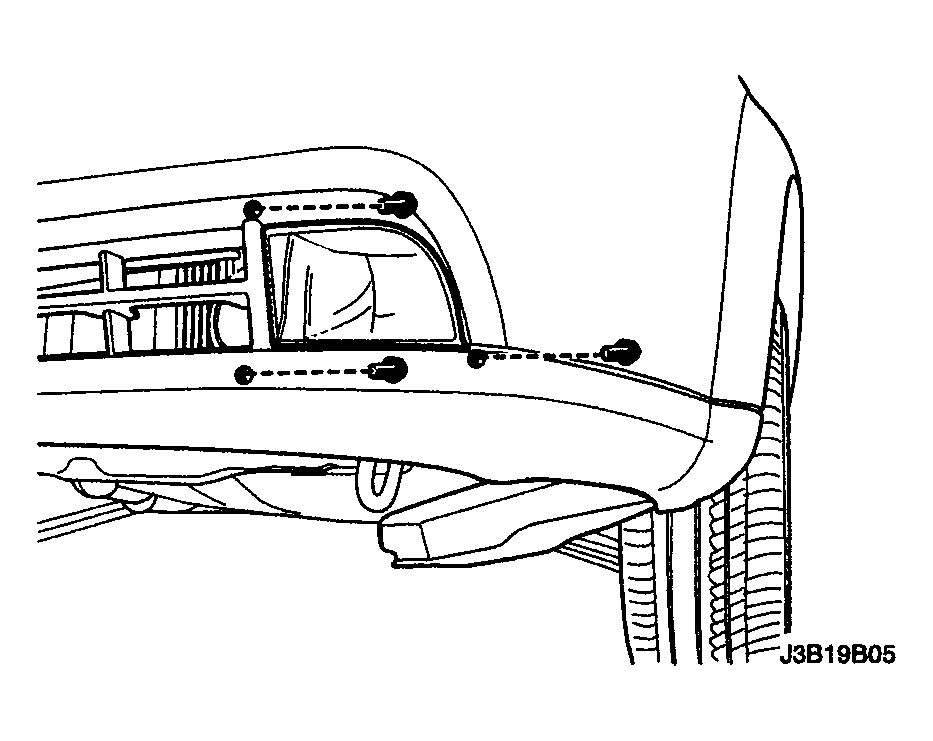

    Fig 1: Installing Front Fog Lamp With Bolts
    G04104351Courtesy of SUZUKI OF AMERICA CORP.
