Extension Lamps Removal and Installation (For Hatchback Model): Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Open the hatchback door.
Remove the extension lamp assess cover.
Remove the nuts and the extension lamp assembly.
Disconnect the electrical connector.

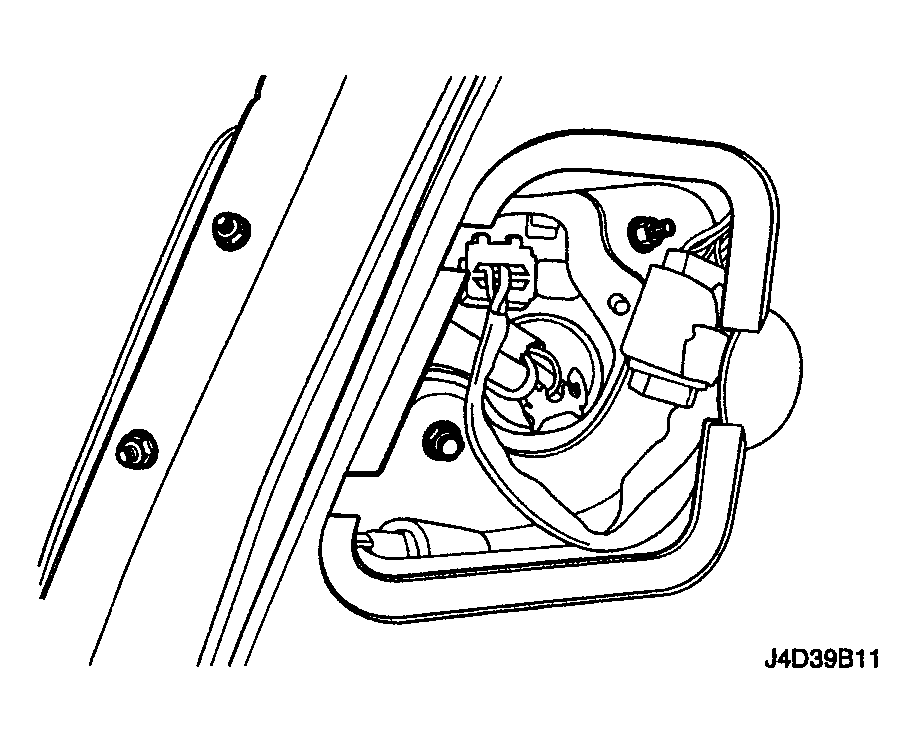

Fig 1: Removing Extension Lamps (For Hatchback Model)
Courtesy of SUZUKI OF AMERICA CORP.
