Center High Mount Stoplamp Removal and Installation (For Hatchback Model): Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Pry off the hatchback door upper garnish molding.
Remove the bolts and the CHMSL.

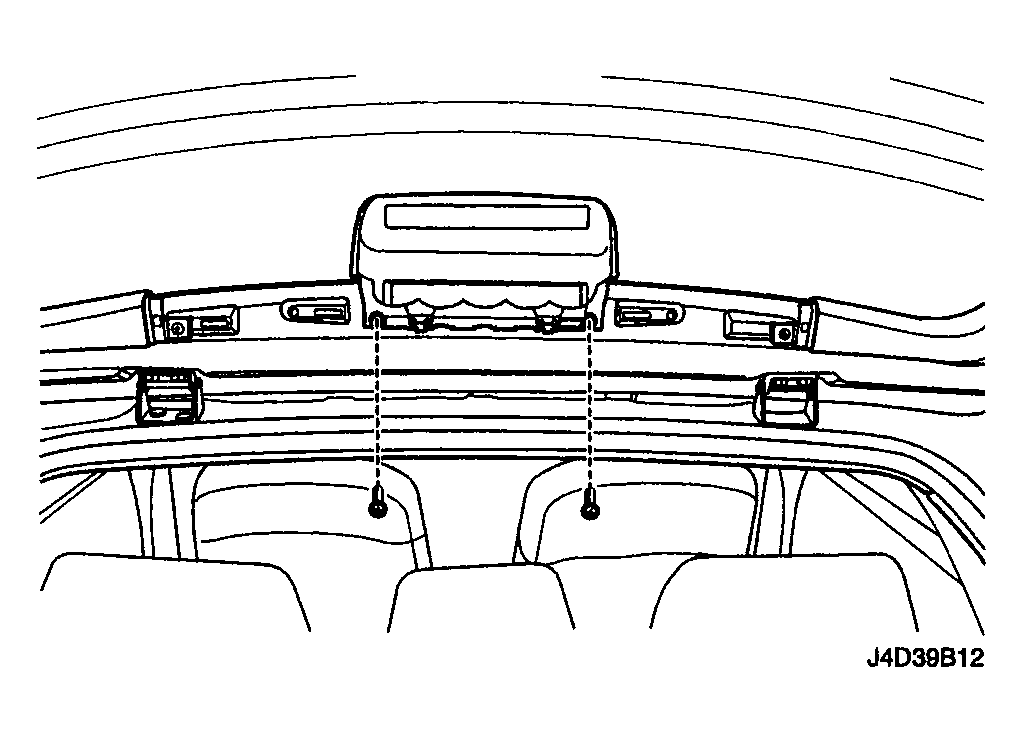

Fig 1: Removing Center High Mounted Stoplamp (For Hatchback Model)
Courtesy of SUZUKI OF AMERICA CORP.
