Starter Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the nut which secures the starter ground wire to the lower mounting stud and remove the ground wire.
Remove the starter-to-engine block mounting bolt and the starter-to-transmission mounting bolt.

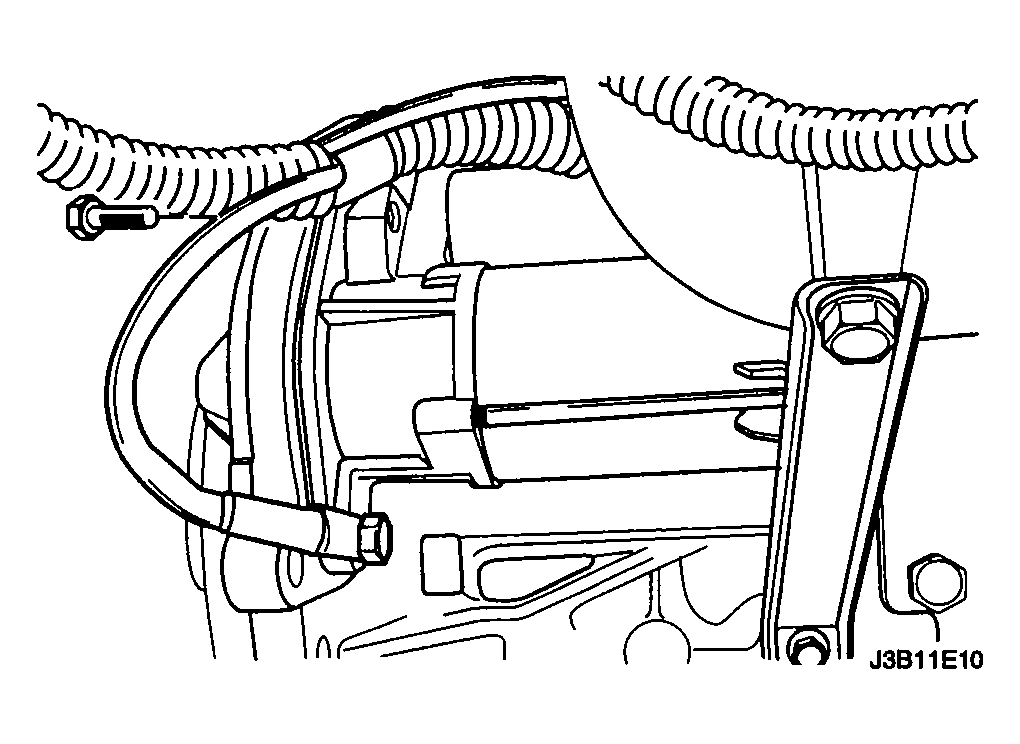

Fig 1: Removing Starter-To-Engine Block Mounting Bolt And Starter-To-Transmission Mounting Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the starter solenoid nuts to disconnect the electrical cable.
Remove the starter assembly.

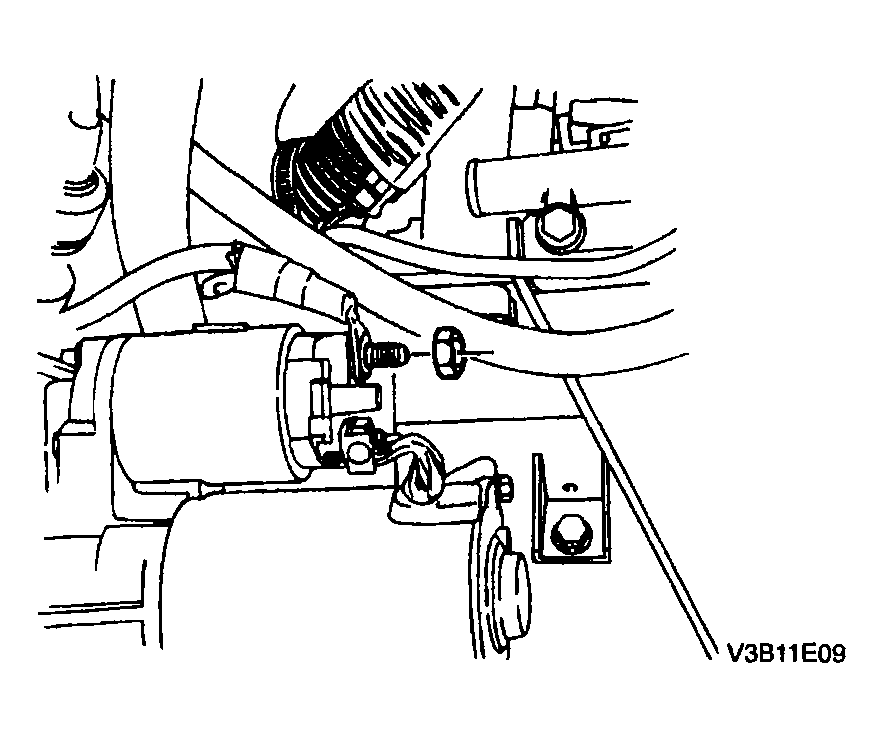

Fig 2: Removing Starter Solenoid Nuts To Disconnect Electrical Cable
Courtesy of SUZUKI OF AMERICA CORP.
