A/C Pressure Transducer Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Install the new O-ring seal on the transducer.

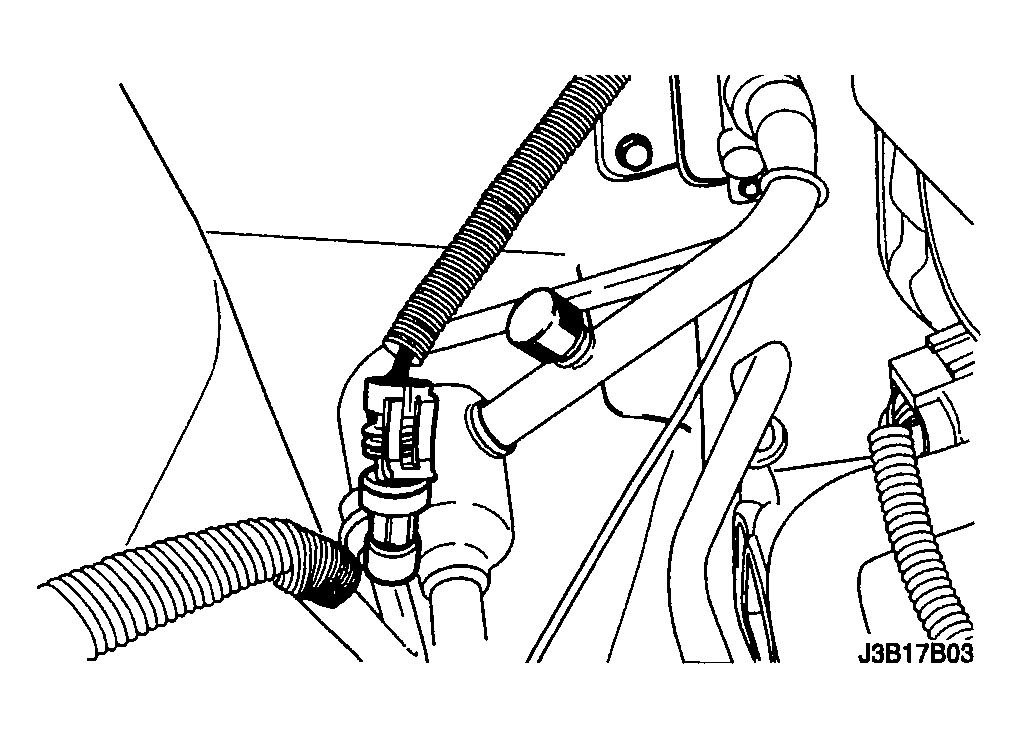

- Install the pressure transducer.
Tighten
Tighten the pressure transducer to 7 N.m (62 lb-in).
- Connect the wire connector.
- Connect the negative battery cable.
- Recover the refrigerant. Refer to "DISCHARGING, ADDING OIL, EVACUATING, AND CHARGING PROCEDURES FOR A/C SYSTEM :".
