A/C Expansion Valve Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Suzuki Reno and 2005 Suzuki Forenza. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the grooves that fit the O-rings of any dirt or contamination.
- Install new O-rings on the evaporator tubes.

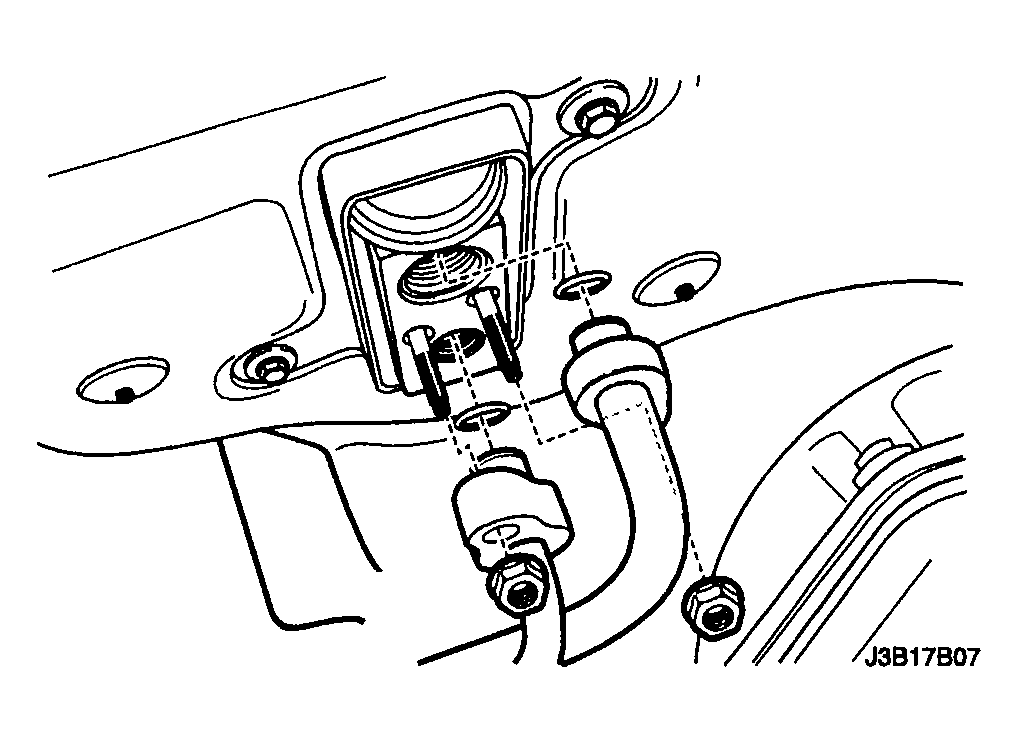

- Install a expansion valve onto the evaporator tubes.
- Insert the expansion valve connector block retaining stud bolts.
Tighten
Tighten the expansion valve retaining stud bolts to 8 N.m (71 lb-in).
- Install the suction hose/liquid pipe block retaining nuts.
Tighten
Tighten the suction hose/liquid pipe block-to-expansion valve retaining nuts to 14 N.m (10 lb-ft).
- Connect the negative battery cable.
- Evacuate and recharge the A/C system. Refer to "DISCHARGING, ADDING OIL, EVACUATING, AND CHARGING PROCEDURES FOR A/C SYSTEM :".
