Evaporative Emission (EVAP) Pipe Removal and Installation: Installation

  1. Install the EVAP emission canister vapor pipe.
  2. Install the EVAP emission canister vapor pipe retaining bolts.

    Tighten:

    Tighten the EVAP emission canister vapor pipe retaining bolts to 7 - 12 N.m (5.2 - 8.9 lb-in).

  3. Connect the EVAP emission canister vapor pipe to the EVAP emission canister vapor rear hose.
    Fig 1: Identifying EVAP Emission Canister Vapor Pipe And EVAP Emission Canister Vapor Rear Hose
    G04716356
  4. Connect the EVAP emission canister front hose to the EVAP emission canister vapor pipe.

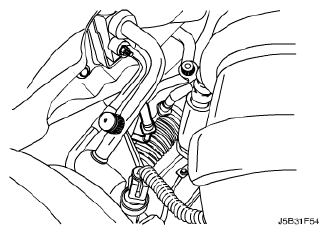

    Fig 2: Identifying EVAP Emission Canister Front Hose And EVAP Emission Canister Vapor Pipe
    G04716355
  5. Connect the EVAP emission canister front hose to the EVAP emission canister purge solenoid valve.

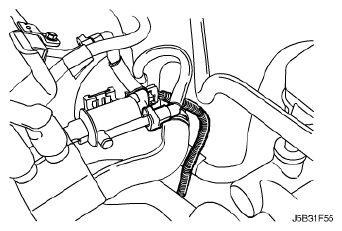

    Fig 3: Identifying EVAP Emission Canister Front Hose And EVAP Emission Purge Solenoid Valve
    G04716354
