Engine Cranks But Will Not Run: Notes

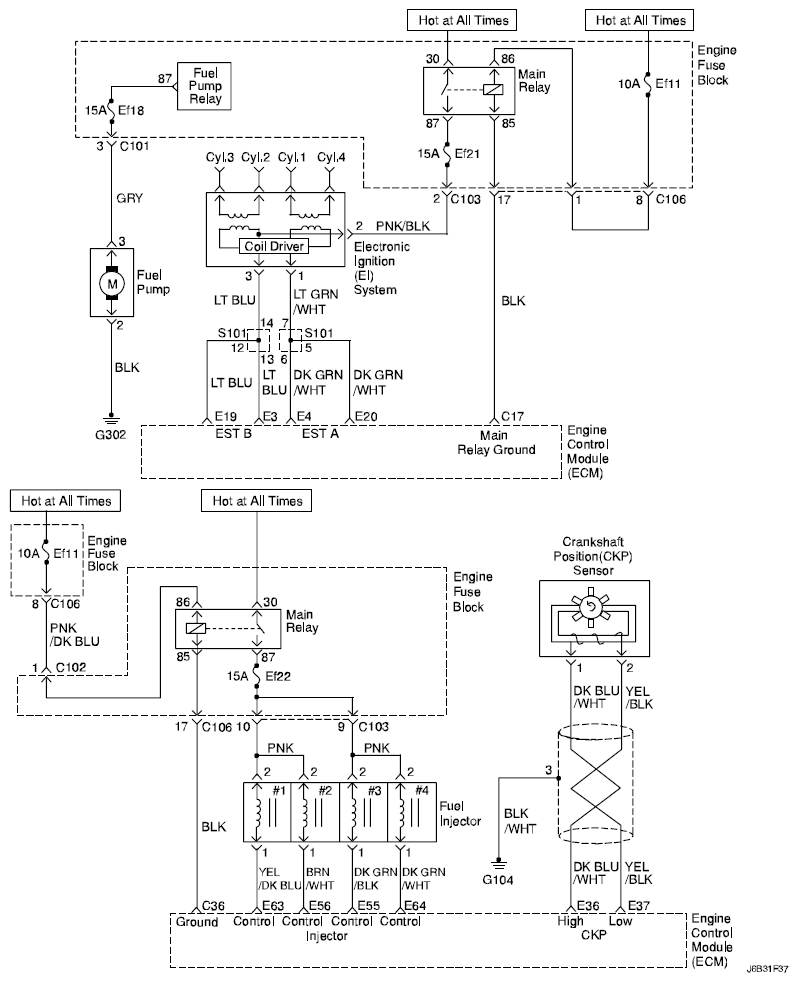

Fig 1: Engine Cranks But Will Not Run - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
