Antilock Braking Mode Description: Release

If the wheel locking tendency continues, the EBCM releases the hydraulic pressure at that brake by opening the outlet valve for that wheel.

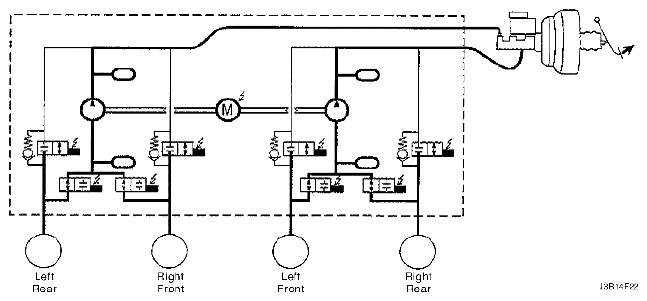

Fig 1: Identifying Antilock Braking Mode - Release
G04717098Courtesy of SUZUKI OF AMERICA CORP.
