Sealing and Caulking

NOTE: Seal the following areas to prevent air leaks water leaks, and rust.

Engine Room

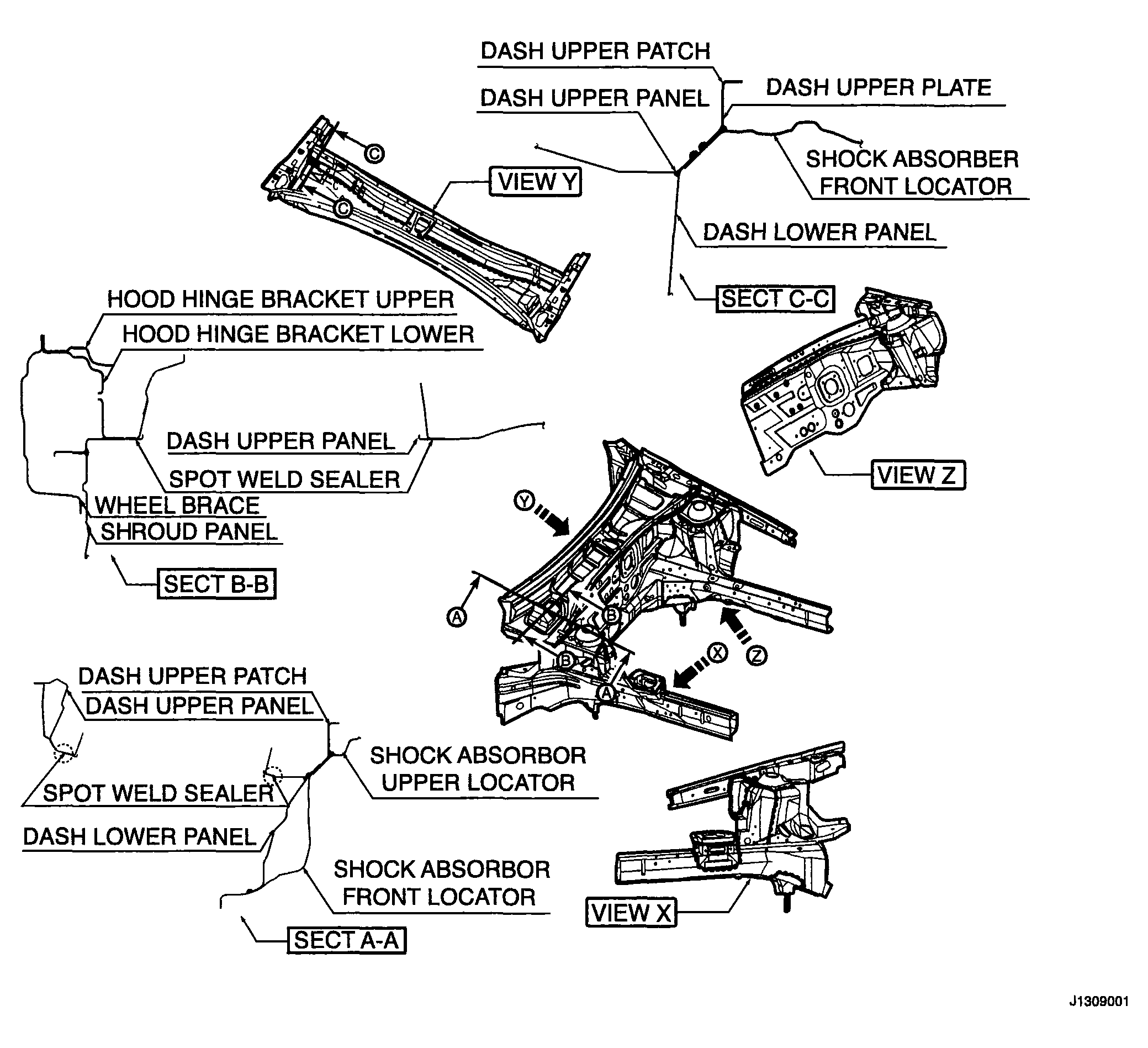

Fig 1: Identifying Engine Room Components Sealing And Caulking Location (1 Of 2)
G04104797Courtesy of SUZUKI OF AMERICA CORP.

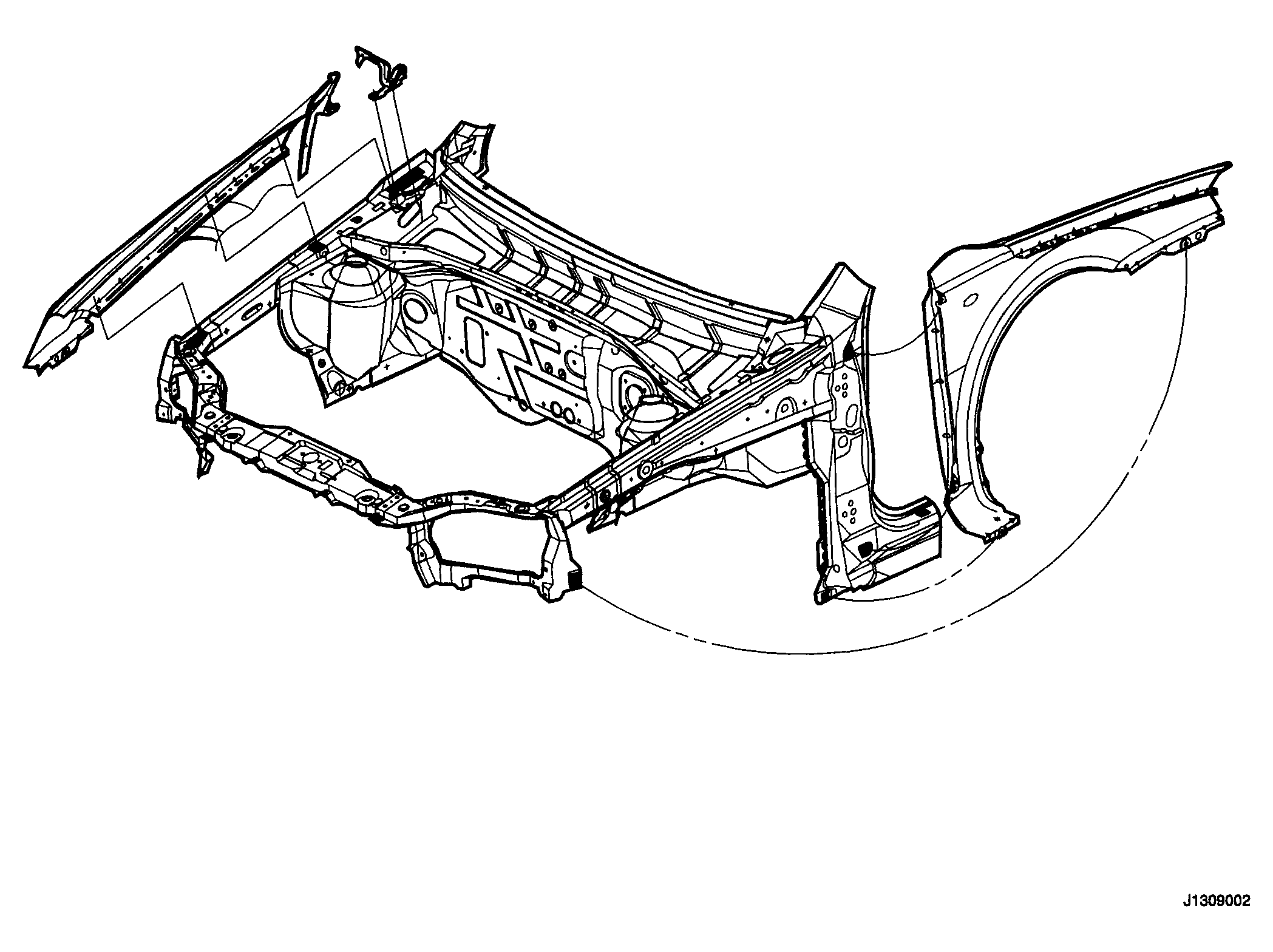

Fig 2: Identifying Engine Room Components Sealing And Caulking Location (2 Of 2)
G04104798Courtesy of SUZUKI OF AMERICA CORP.

Dash

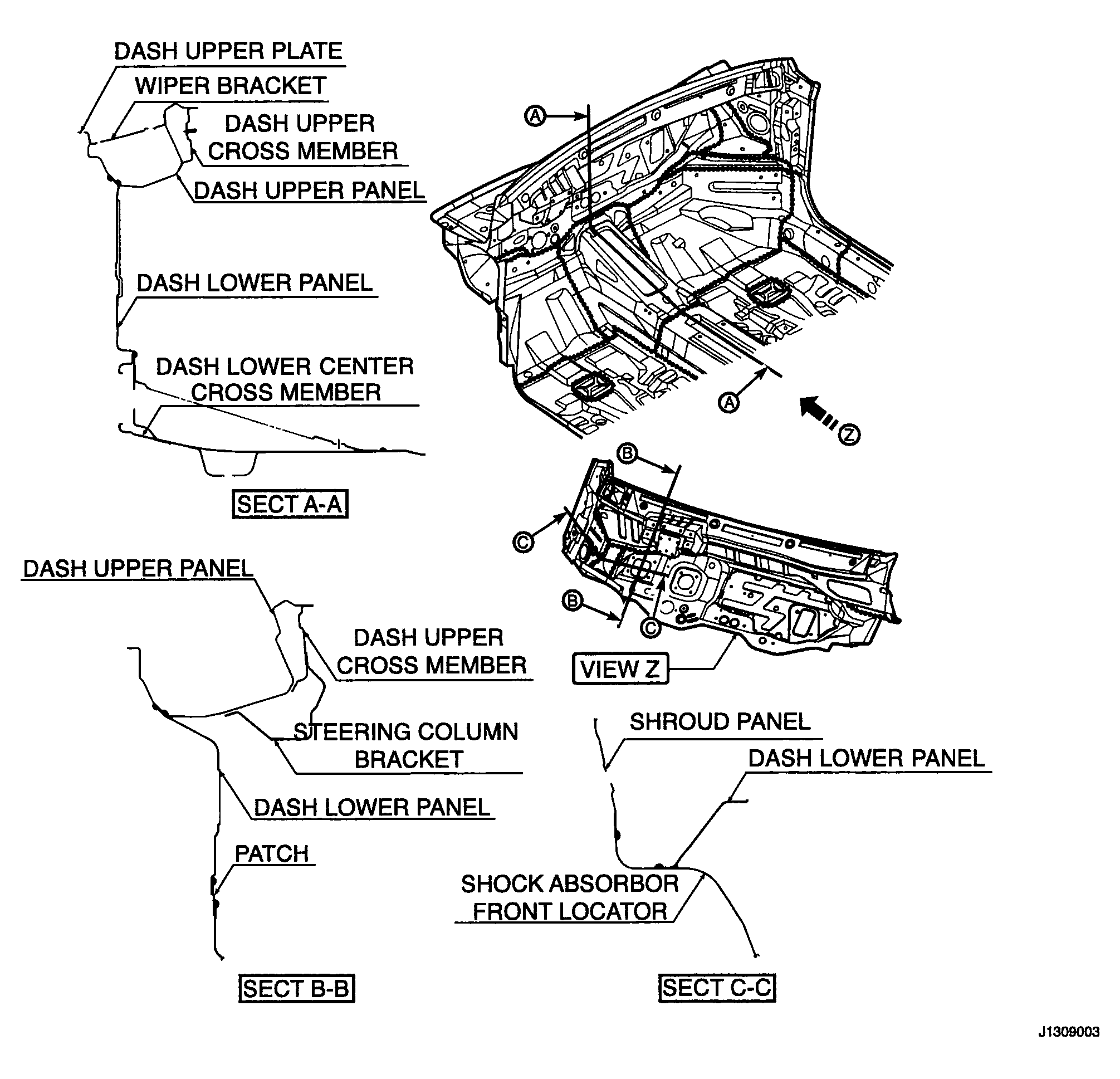

Fig 3: Identifying Dash Components Sealing And Caulking Location
G04104799Courtesy of SUZUKI OF AMERICA CORP.

Floor and Trunk Room

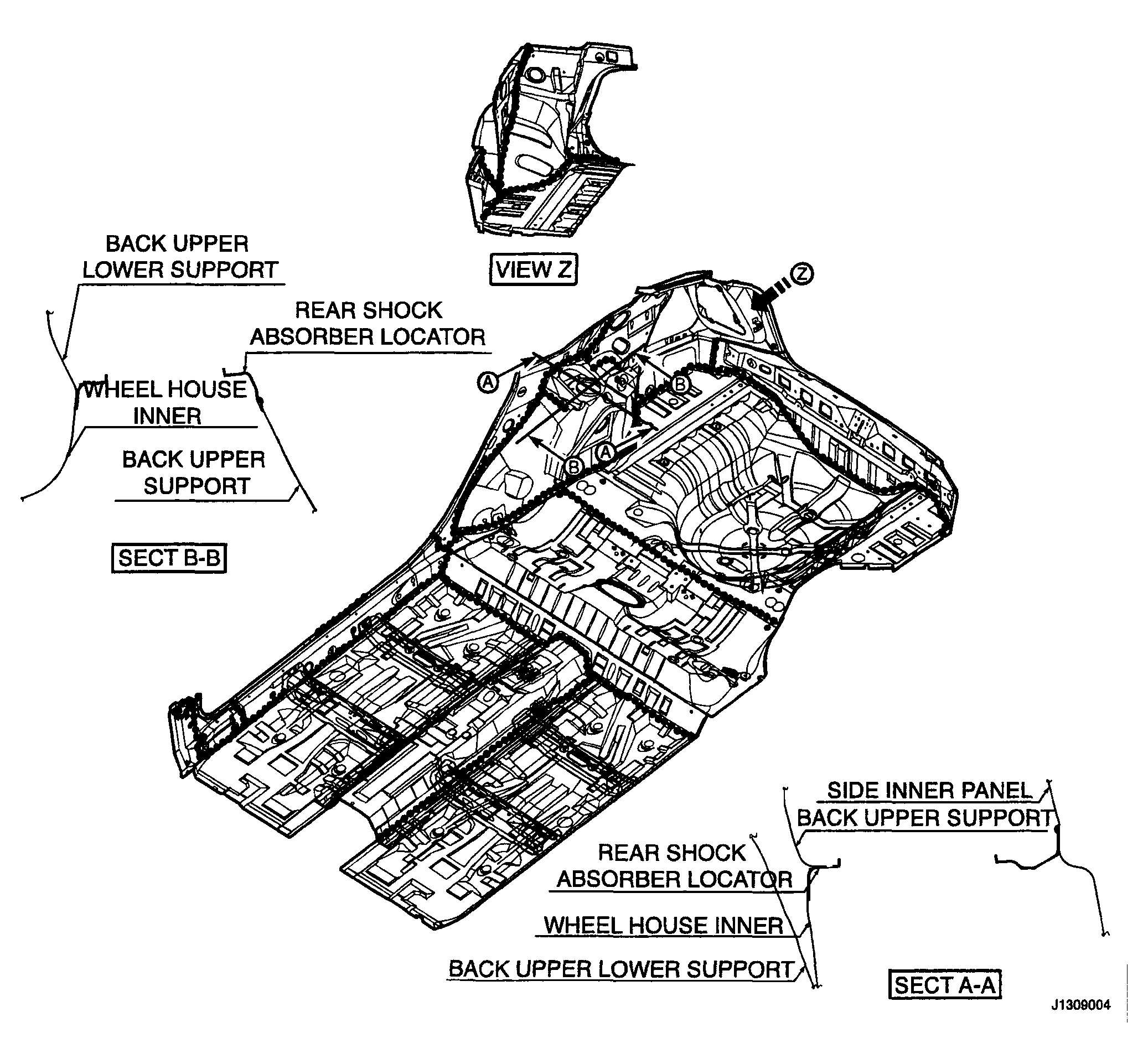

Fig 4: Identifying Floor And Trunk Room Components Sealing And Caulking Location
G04104800Courtesy of SUZUKI OF AMERICA CORP.

Rear Lamp and Trunk Room

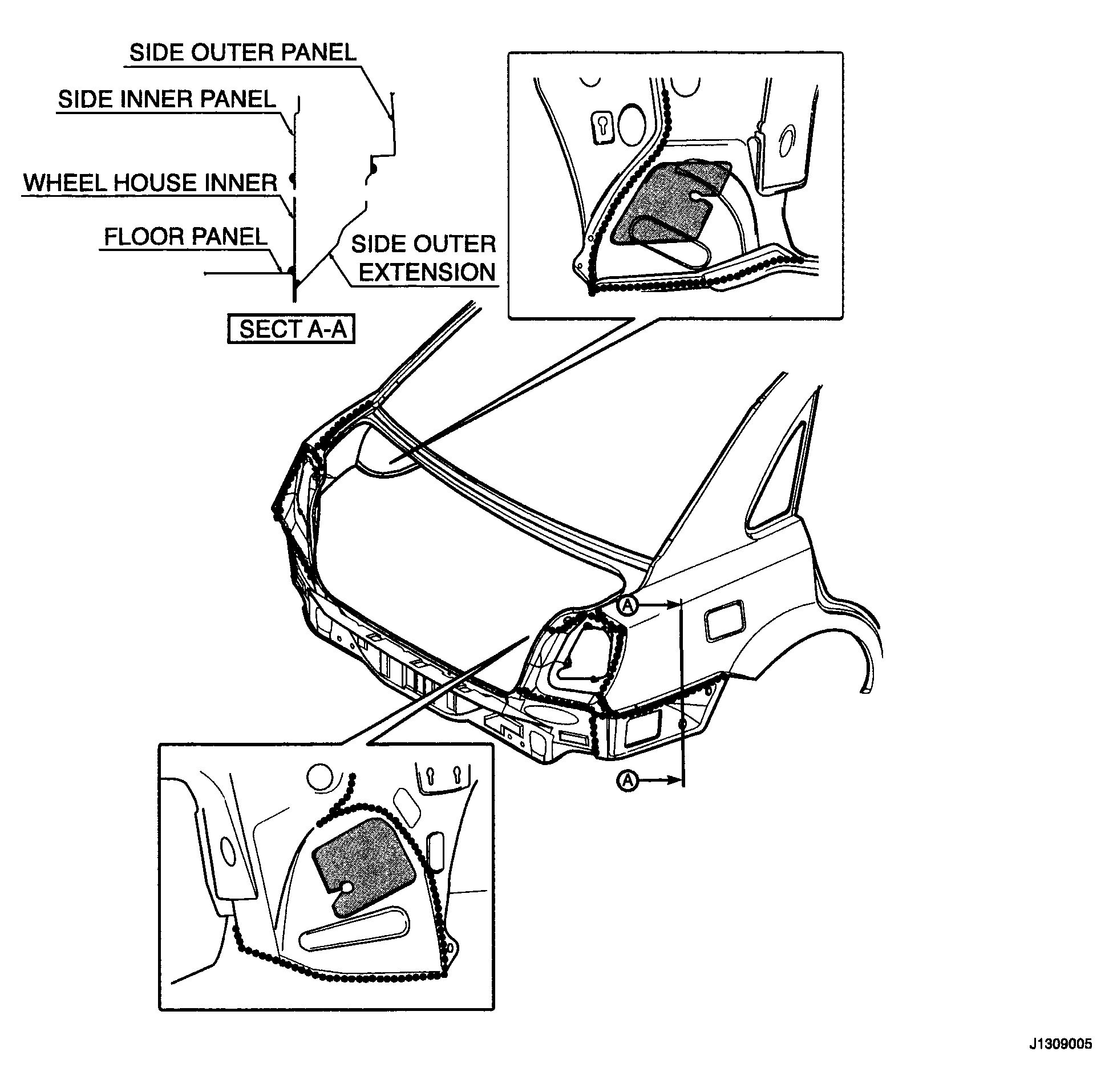

Fig 5: Identifying Rear Lamp And Trunk Room Components Sealing And Caulking Location (1 Of 2)
G04104801Courtesy of SUZUKI OF AMERICA CORP.

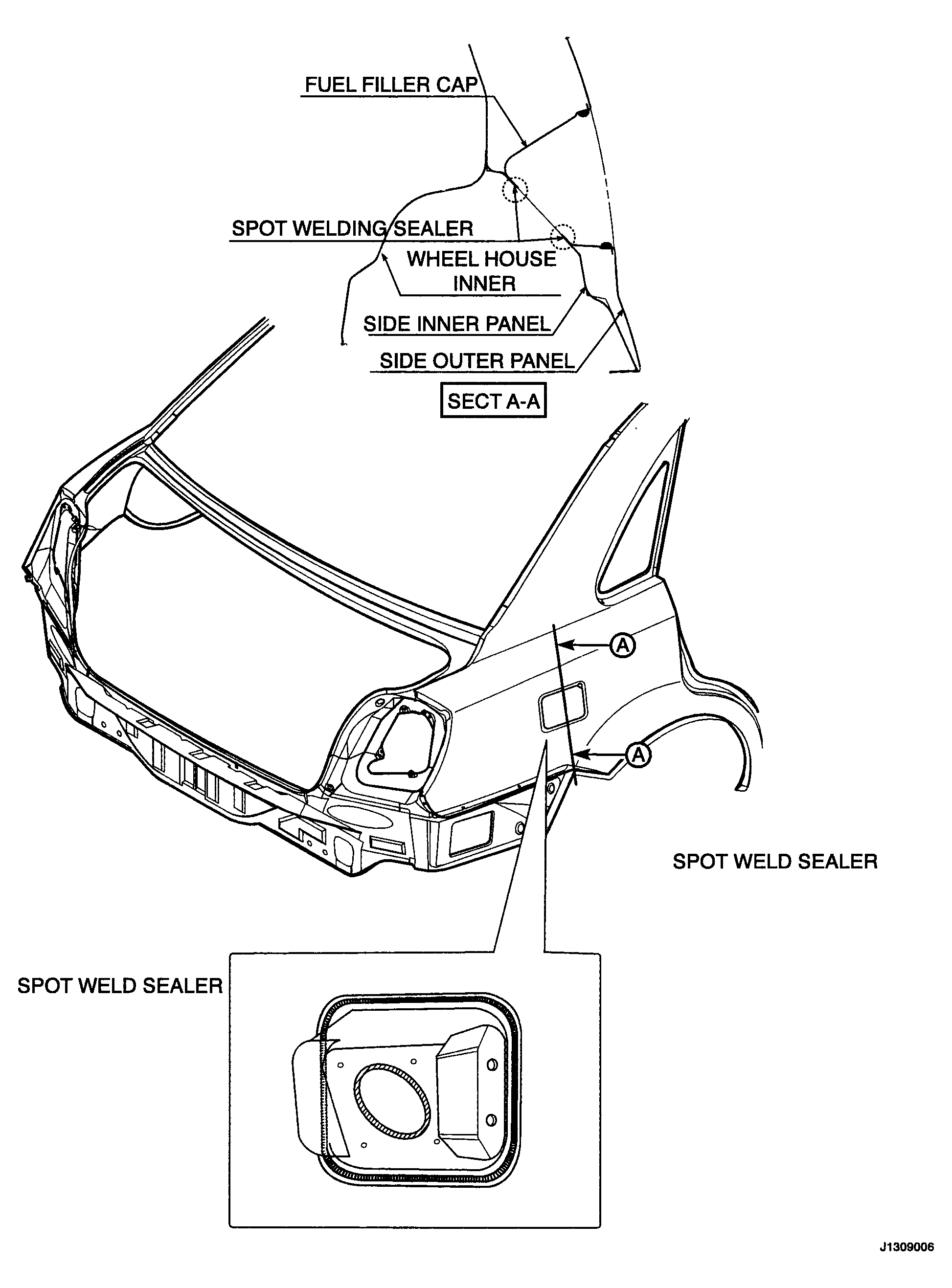

Fig 6: Identifying Rear Lamp And Trunk Room Components Sealing And Caulking Location (2 Of 2)
G04104802Courtesy of SUZUKI OF AMERICA CORP.

Roof

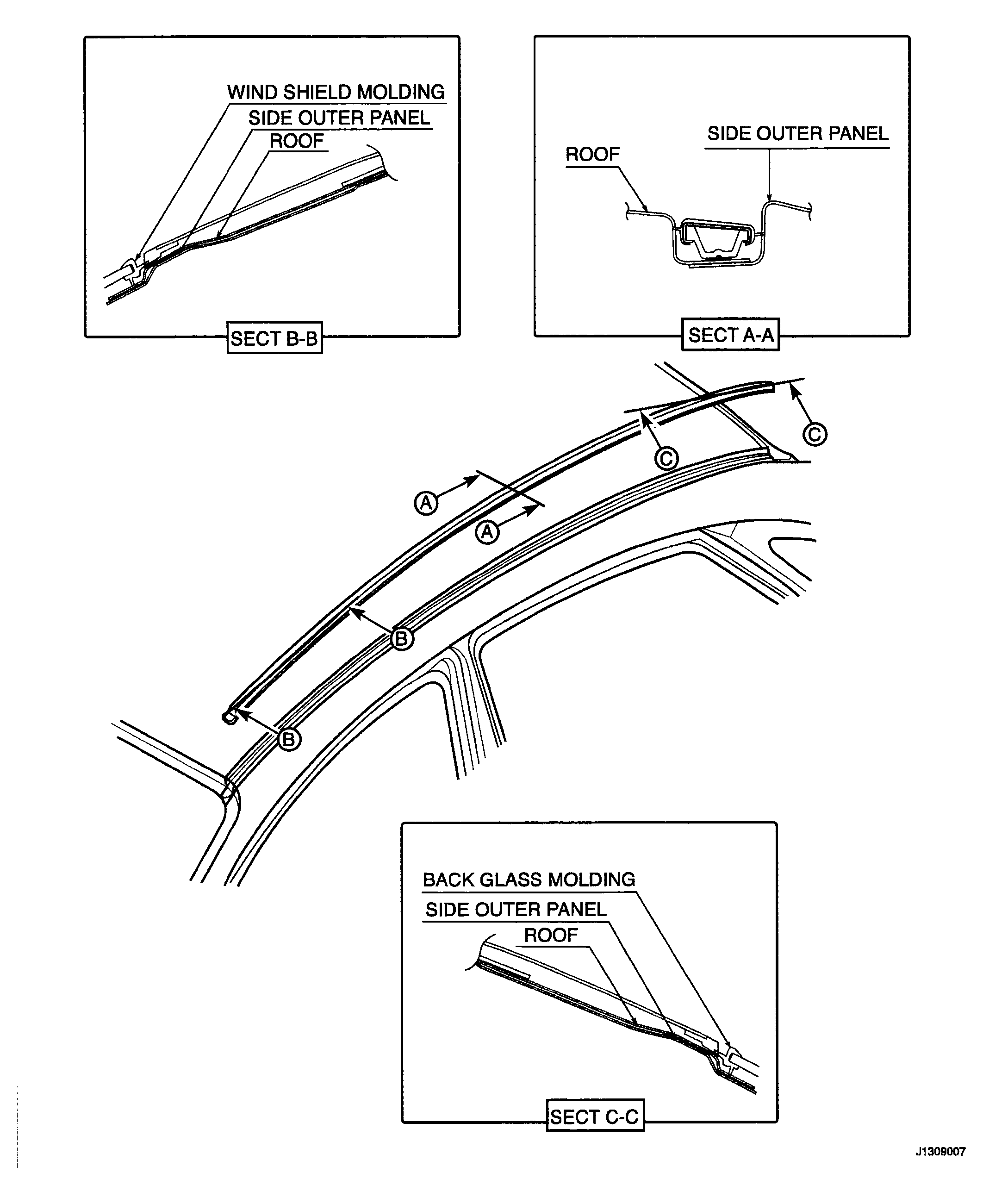

Fig 7: Identifying Roof Components Sealing And Caulking Location (1 Of 2)
G04104803Courtesy of SUZUKI OF AMERICA CORP.

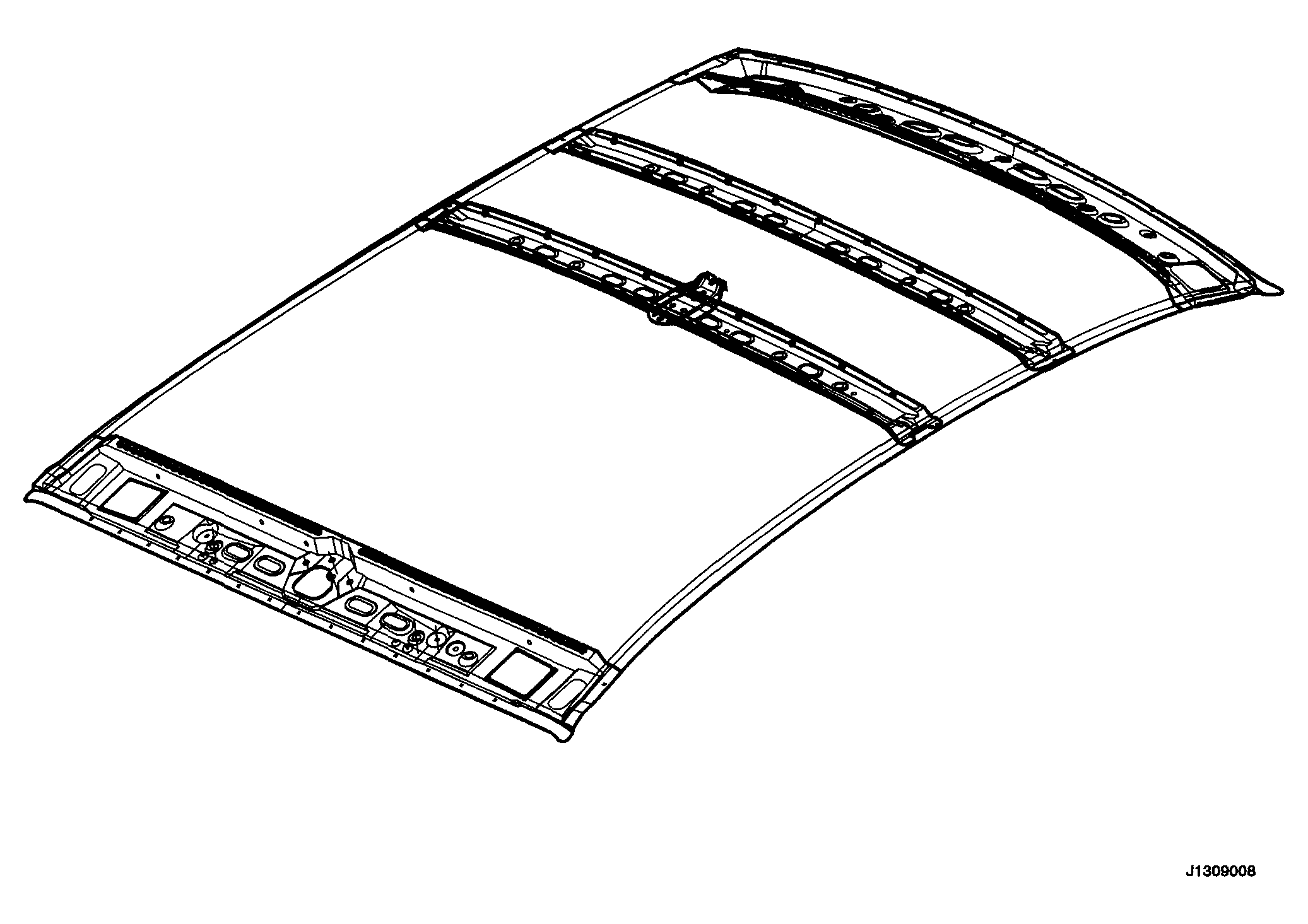

Fig 8: Identifying Roof Components Sealing And Caulking Location (2 Of 2)
G04104804Courtesy of SUZUKI OF AMERICA CORP.

Sun Roof

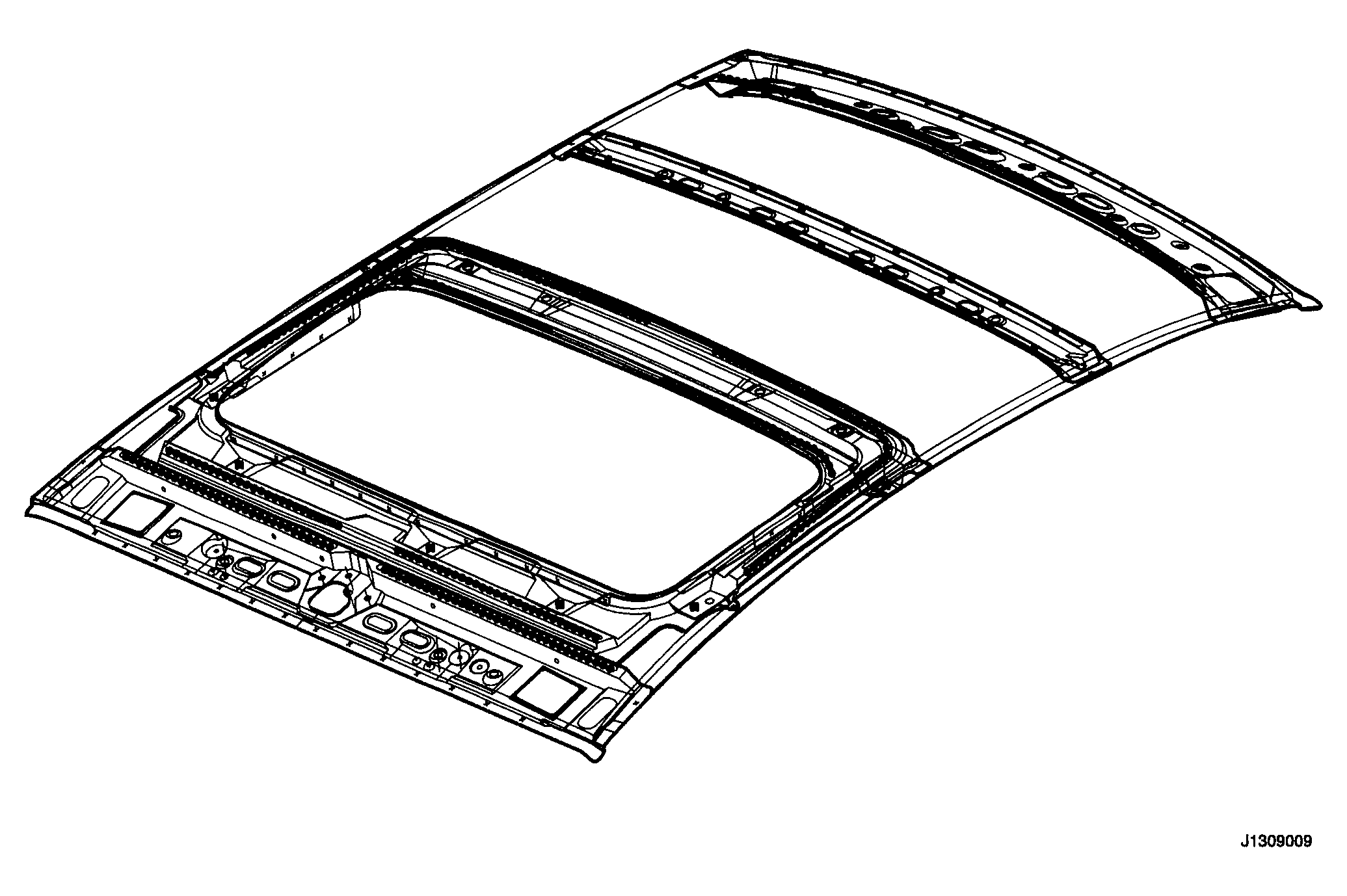

Fig 9: Identifying Sun Roof Components Sealing And Caulking Location
G04104805Courtesy of SUZUKI OF AMERICA CORP.

Hood and Trunk Lid

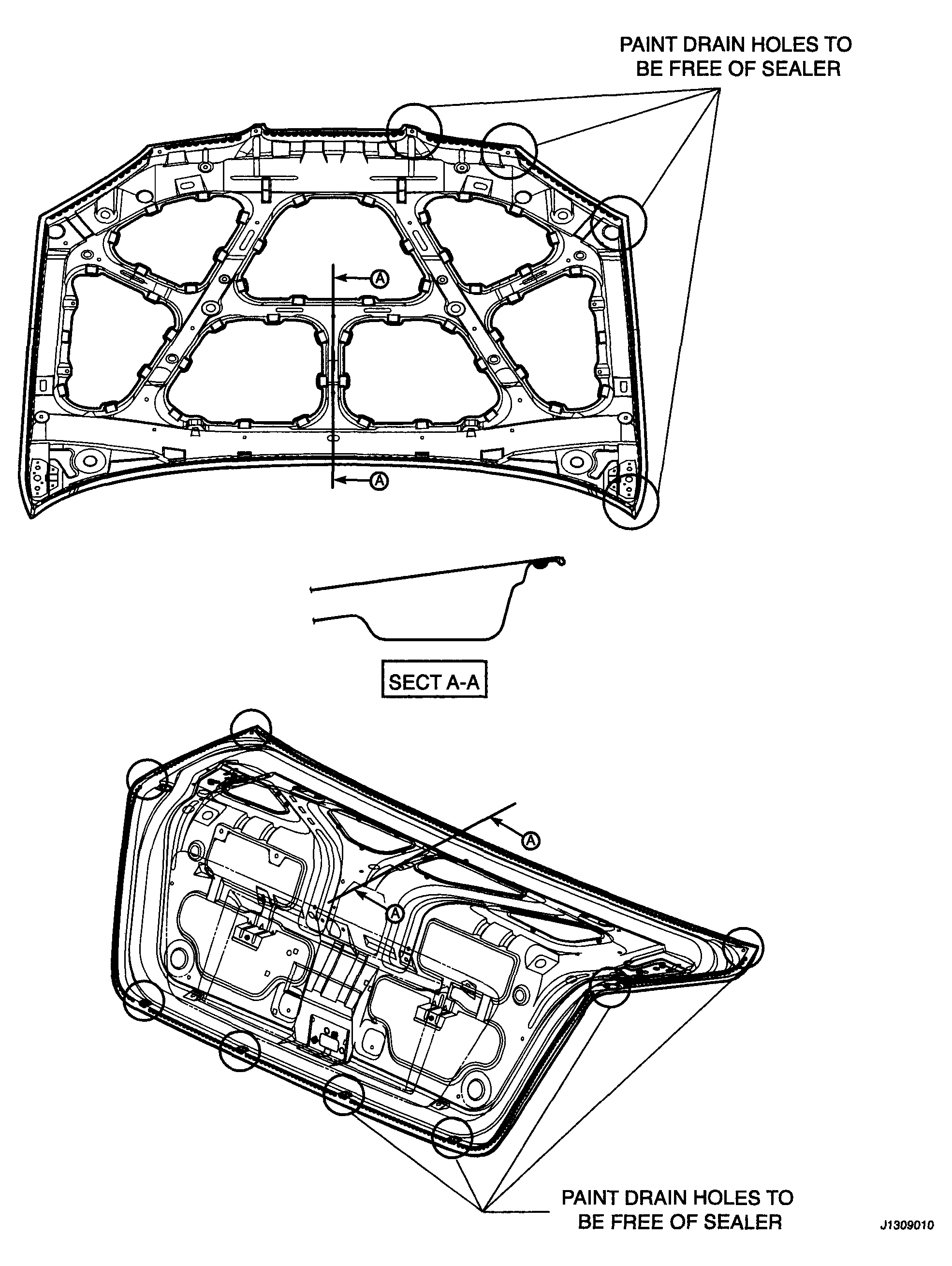

Fig 10: Identifying Hood And Trunk Lid Components Sealing And Caulking Location
G04104806Courtesy of SUZUKI OF AMERICA CORP.

Tailgate

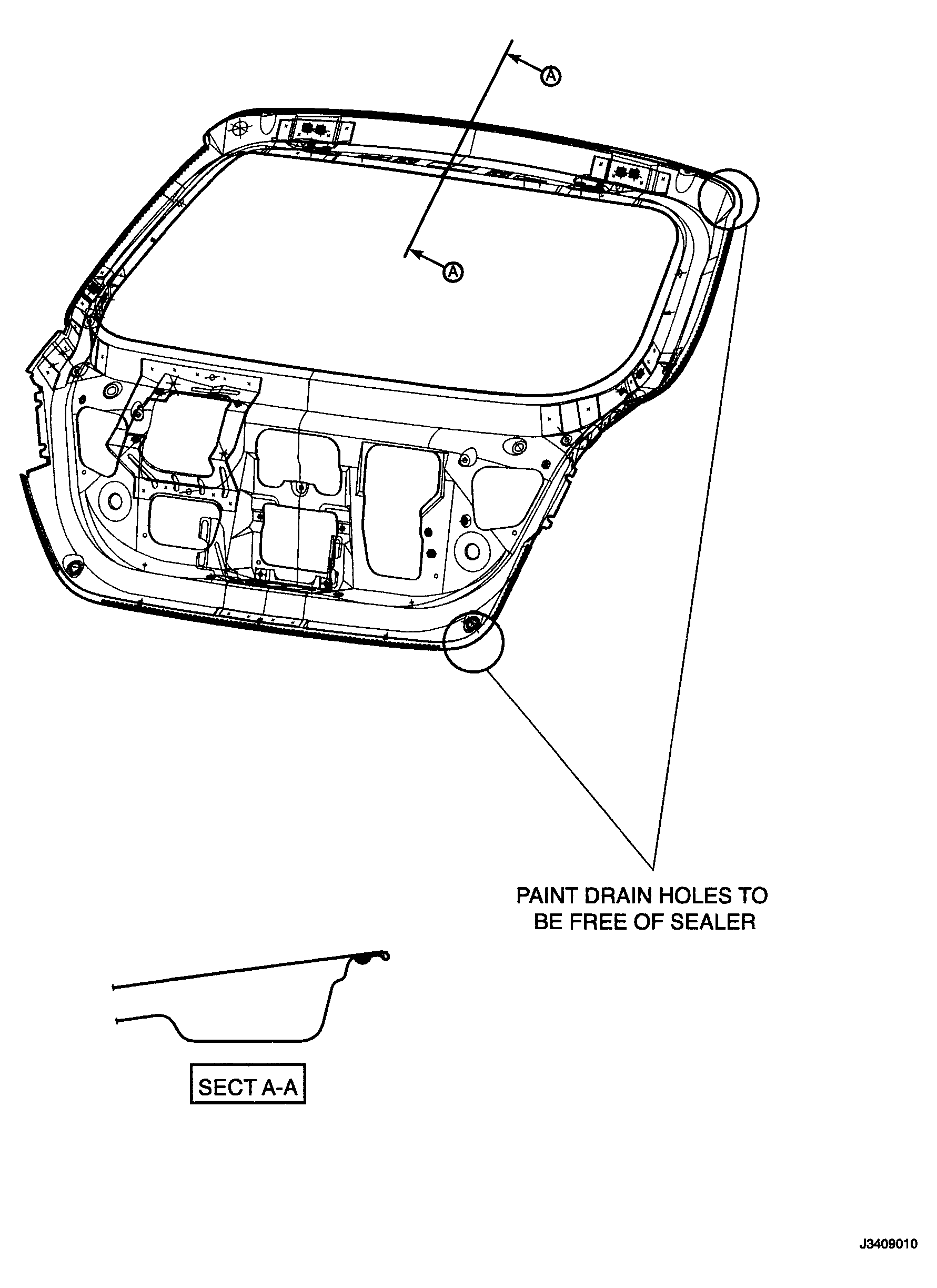

Fig 11: Identifying Tailgate Components Sealing And Caulking Location
G04104807Courtesy of SUZUKI OF AMERICA CORP.

Front and Rear Door

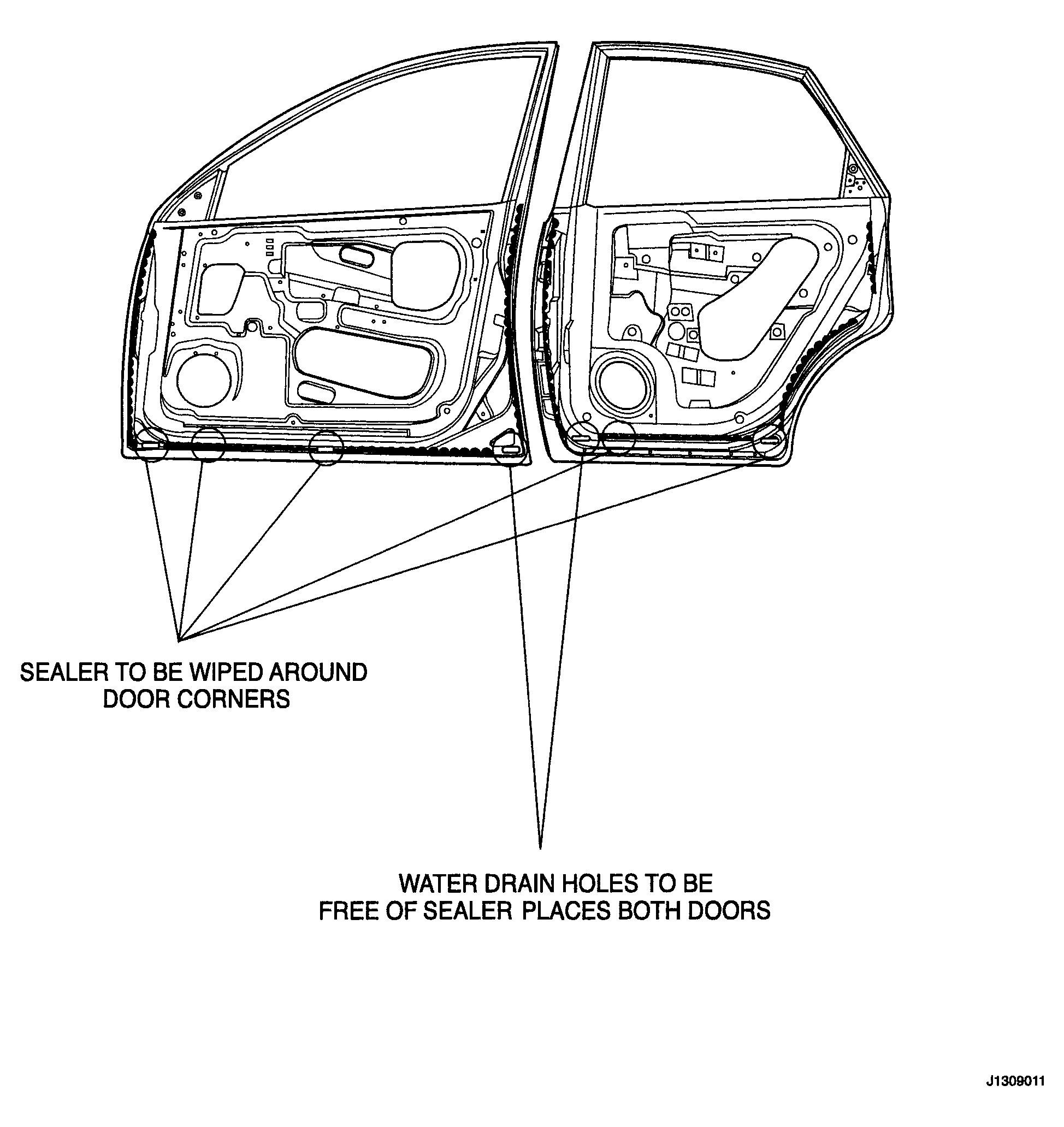

Fig 12: Identifying Front And Rear Door Components Sealing And Caulking Location
G04104808Courtesy of SUZUKI OF AMERICA CORP.
