Area Covered by Anti-Rust Agents

NOTE:

Coating thickness: 0.05 mm (0.002 in.)
Hatching indicated anti-rust agent coating areas.
Follow the below figure for paint repair or refinishing.

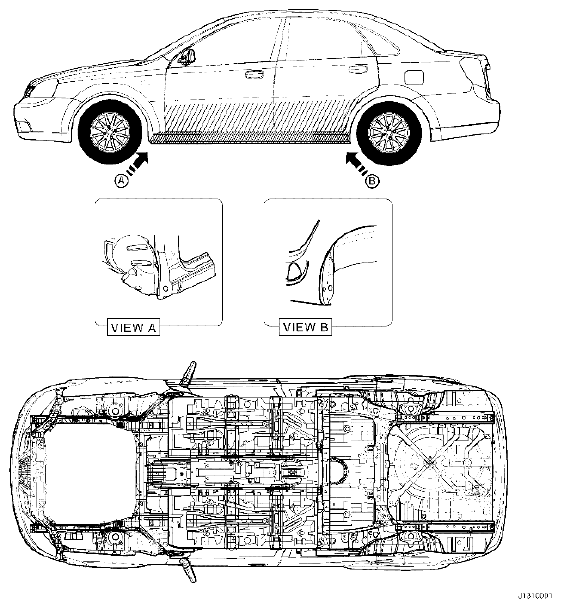

Fig 1: Identifying Area Covered By Anti-Rust Agents

G04718523

Courtesy of SUZUKI OF AMERICA CORP.
