Luggage Compartment Lock Cylinder Removal and Installation: Installation

  1. Install the luggage compartment lock cylinder.
  2. Connect the electrical connector.
  3. Connect the lock rod.
  4. Install the luggage compartment lock cylinder with the nuts.

    Tighten:

    Tighten the luggage compartment lock cylinder nut to 8 N.m (71 lb-in).

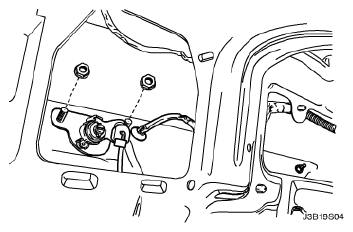

    Fig 1: Identifying Luggage Compartment Lock Cylinder & Nuts
    G04718261Courtesy of SUZUKI OF AMERICA CORP.
