Muffler - Rear Removal and Installation: Installation

Secure the rear muffler assembly to the rubber hangers on the tail pipe end.

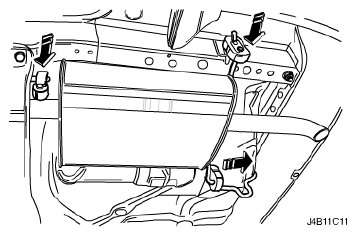

Fig 1: Securing Rear Muffler Assembly To Rubber Hangers On Tail Pipe End
Courtesy of SUZUKI OF AMERICA CORP.
Secure the nuts and the gasket from the rear muffler pipe flange-to-front muffler pipe flange.
Tighten:

Tighten the front muffler-to-rear muffler nuts to 30 N.m (22 lb-ft).

Fig 2: Identifying Nuts And Rear Muffler Pipe Flange
Courtesy of SUZUKI OF AMERICA CORP.
