Surge Tank Removal and Installation: Installation

  1. Install the surge tank to the support mount.
  2. Secure the surge tank with the attaching bolt.

    Tighten:

    Tighten the surge tank attaching bolt to 5 N.m (44 lb-in).

    Fig 1: Identifying Surge Tank Attaching Bolt
    G04716626Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect the return hose and the throttle body hose to the top of the surge tank.
  4. Connect the feed hose to the bottom of the surge tank.
  5. Secure the return hose, the throttle body hose, and the feed hose to the surge tank with the hose clamps.
  6. Fill the surge tank with the coolant to the center ridge, or to the MAX mark.

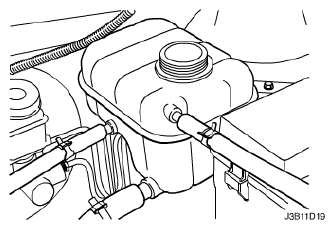

    Fig 2: Identifying Feed Hose From Bottom Of Surge Tank
    G04716625Courtesy of SUZUKI OF AMERICA CORP.
