Digital Clock Removal and Installation (For NOTCHBACK Model): Installation

  1. Install the digital clock with the screws.
  2. Connect the electrical connector.
  3. Install the center molding.
  4. Connect the negative battery cable.

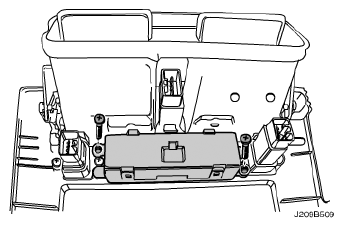

    Fig 1: Identifying Digital Clock And Screws (For Notchback Model)
    G04718127Courtesy of SUZUKI OF AMERICA CORP.
