ABS System Circuit Diagram

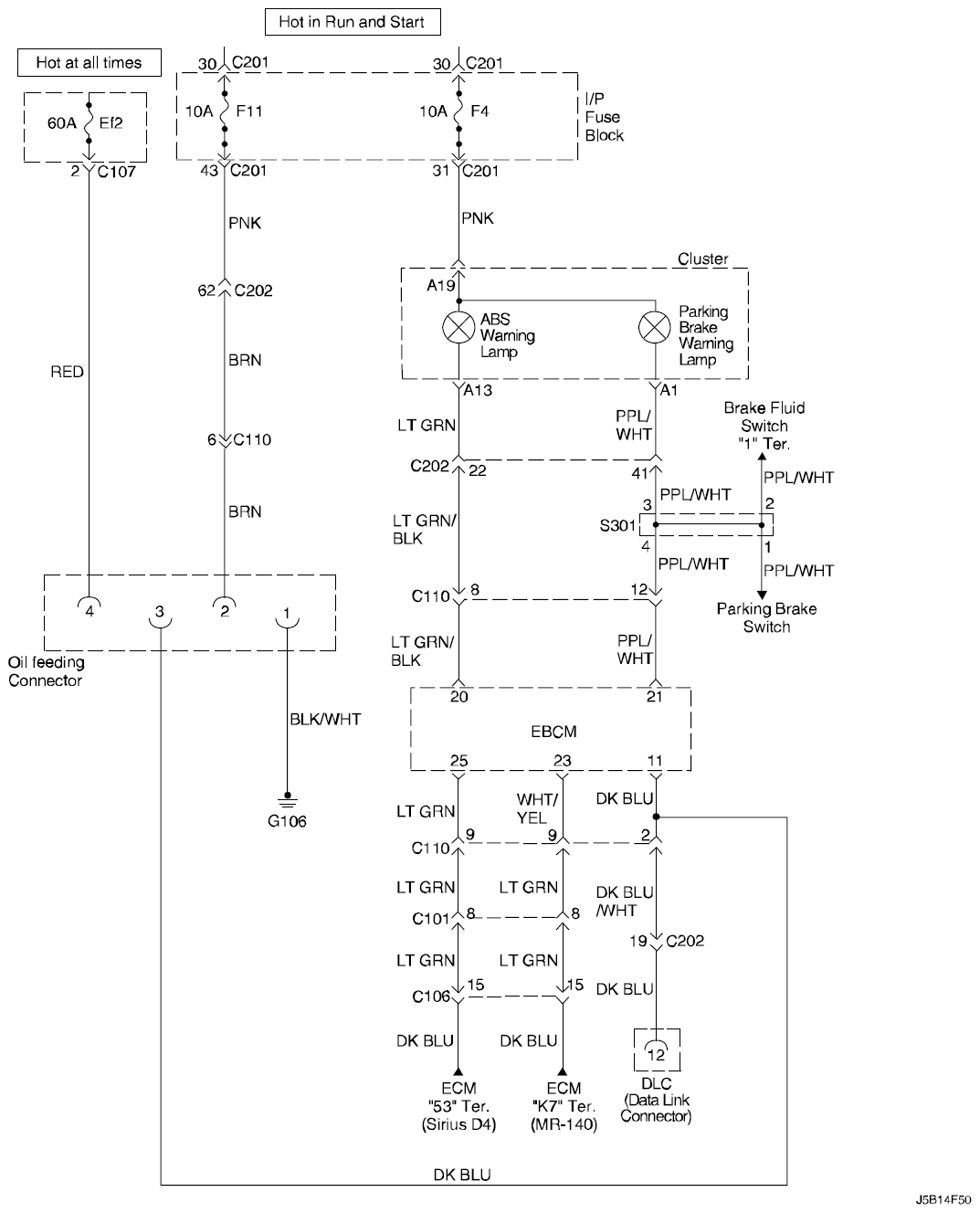

Fig 1: 2006 ABS System Circuit Diagram (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

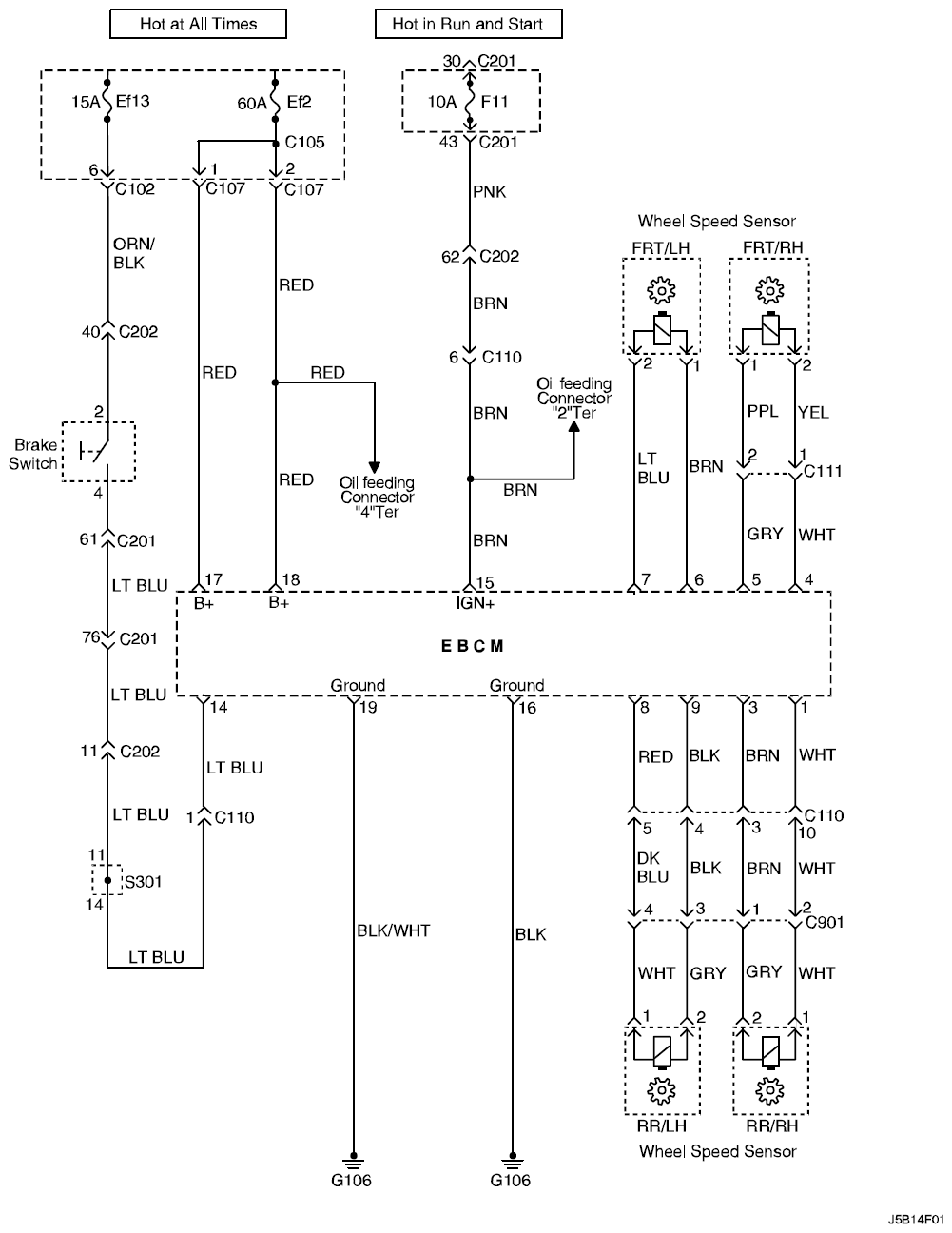

Fig 2: 2006 ABS System Circuit Diagram (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

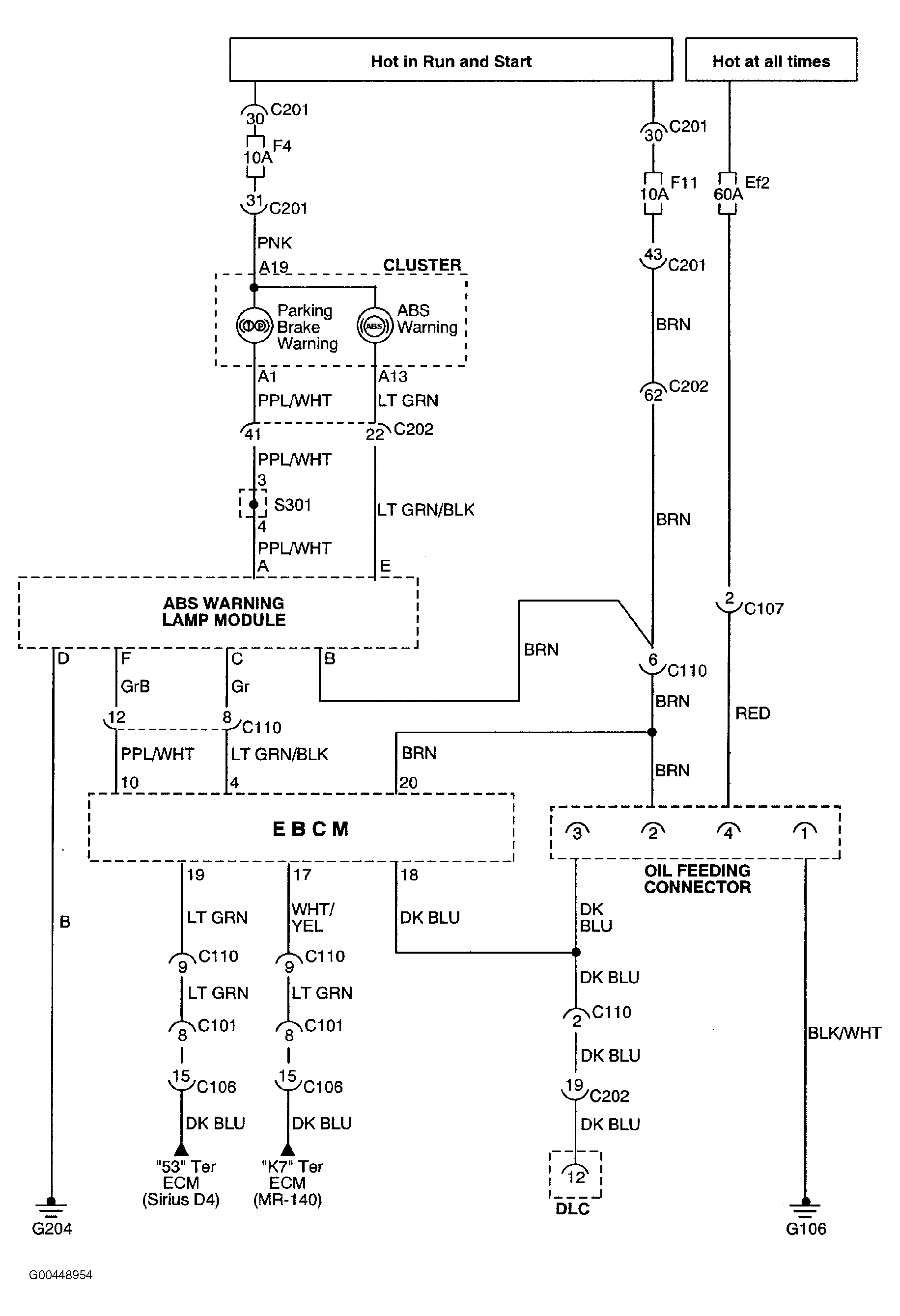

Fig 3: 2007 ABS System Circuit Diagram (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

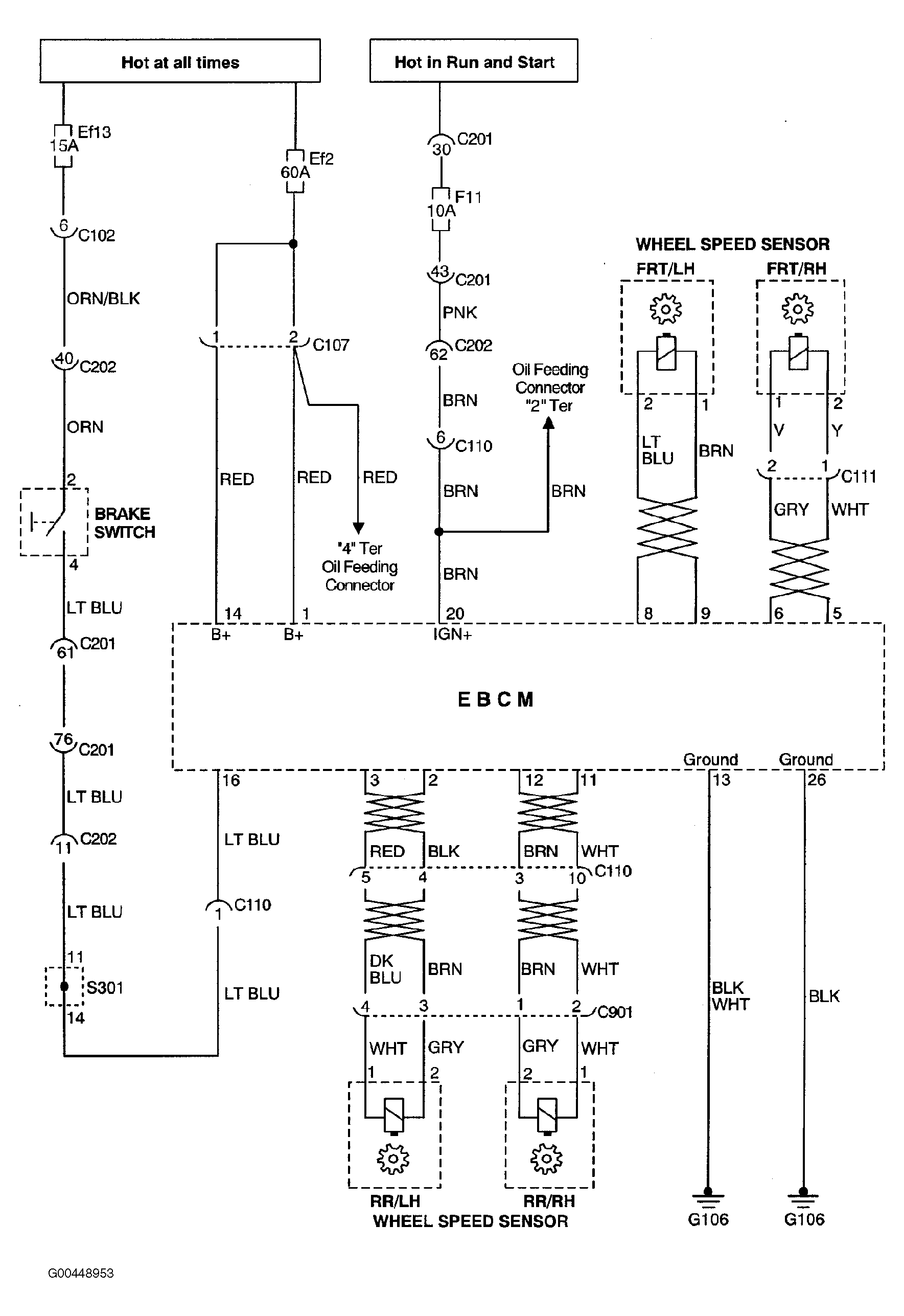

Fig 4: 2007 ABS System Circuit Diagram (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
