Rear Wheel Speed Sensor Removal and Installation: Installation

Install the rear hub unit to the knuckle assembly.
Tighten:

Tighten the rear hub unit to the knuckle assembly to 65 N.m (48 lb-ft).
Connect the rear wheel speed sensor electrical connector.

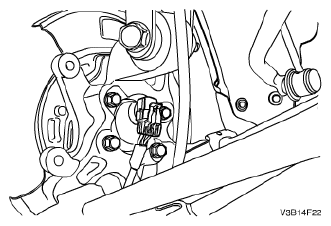

Fig 1: Identifying Rear Wheel Speed Sensor Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
