DTC C0045 / C0046: Left Rear Wheel Speed Sensor Circuit Malfunction: Notes

Fig 1: 2006 Left Rear Wheel Speed Sensor Circuit Malfunction - Circuit Diagram
G04717115Courtesy of SUZUKI OF AMERICA CORP.

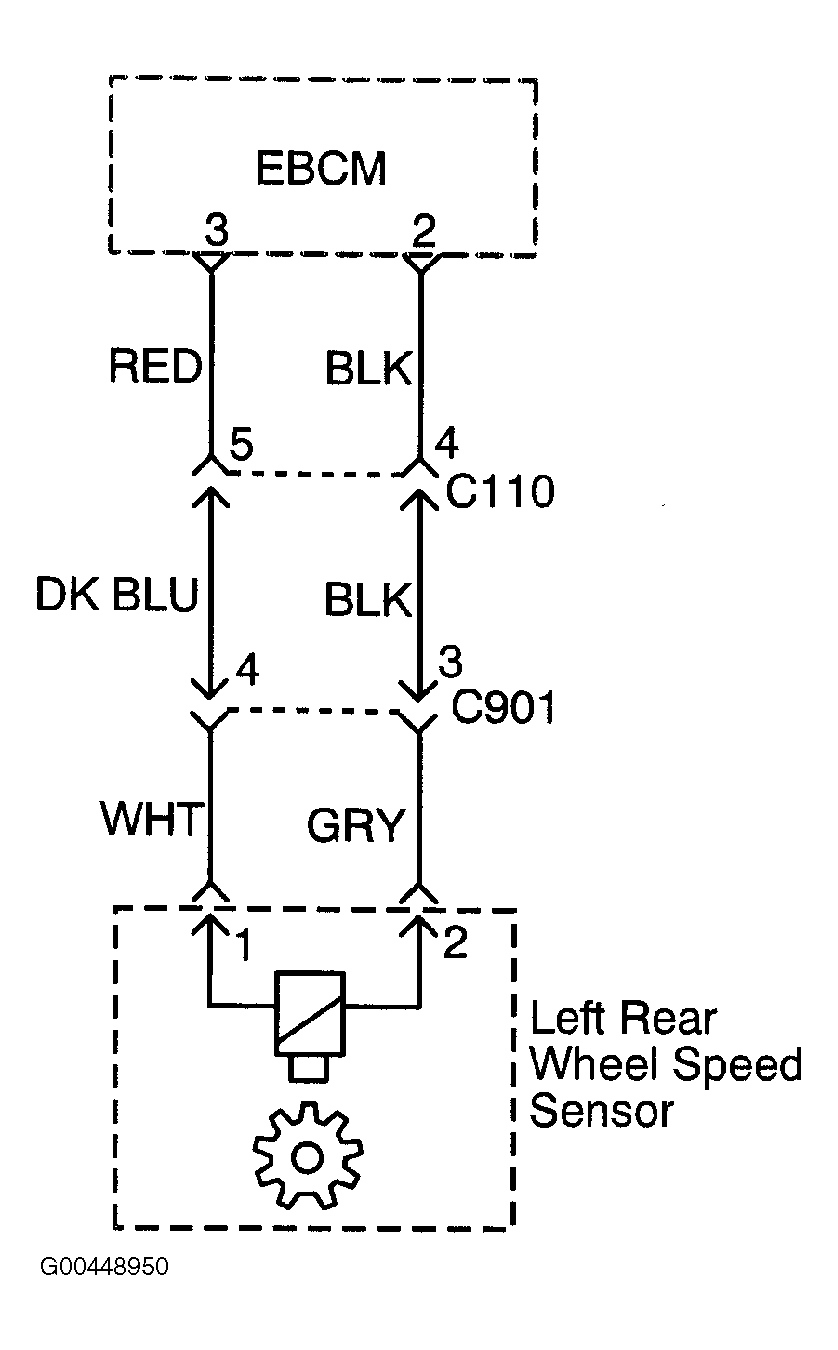

Fig 2: 2007 Left Rear Wheel Speed Sensor Circuit Malfunction - Circuit Diagram
G00448950Courtesy of SUZUKI OF AMERICA CORP.
