ABS / EBD System Component Location

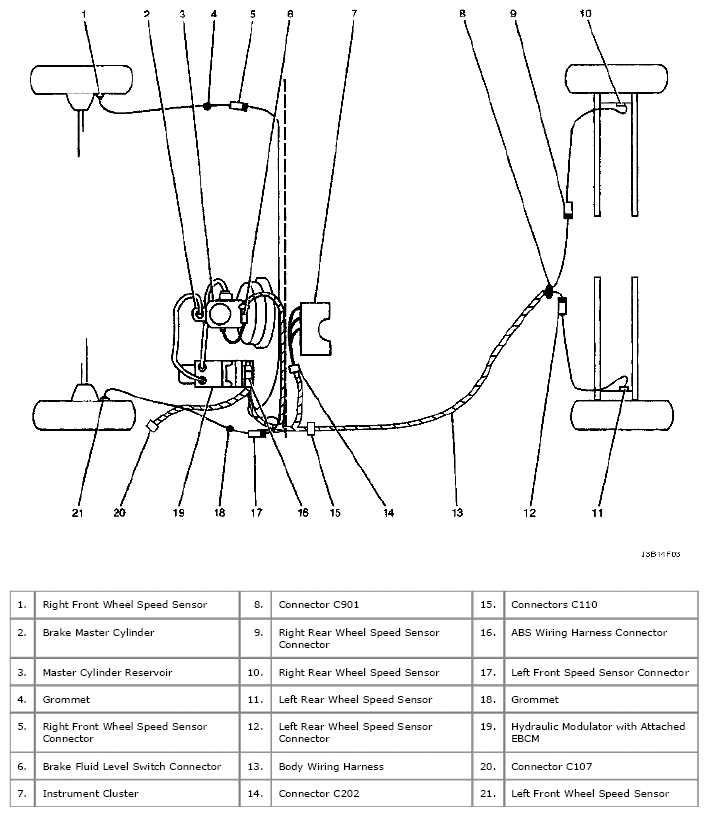

Fig 1: Identifying 2006 ABS / EBD System Component Location
Courtesy of SUZUKI OF AMERICA CORP.

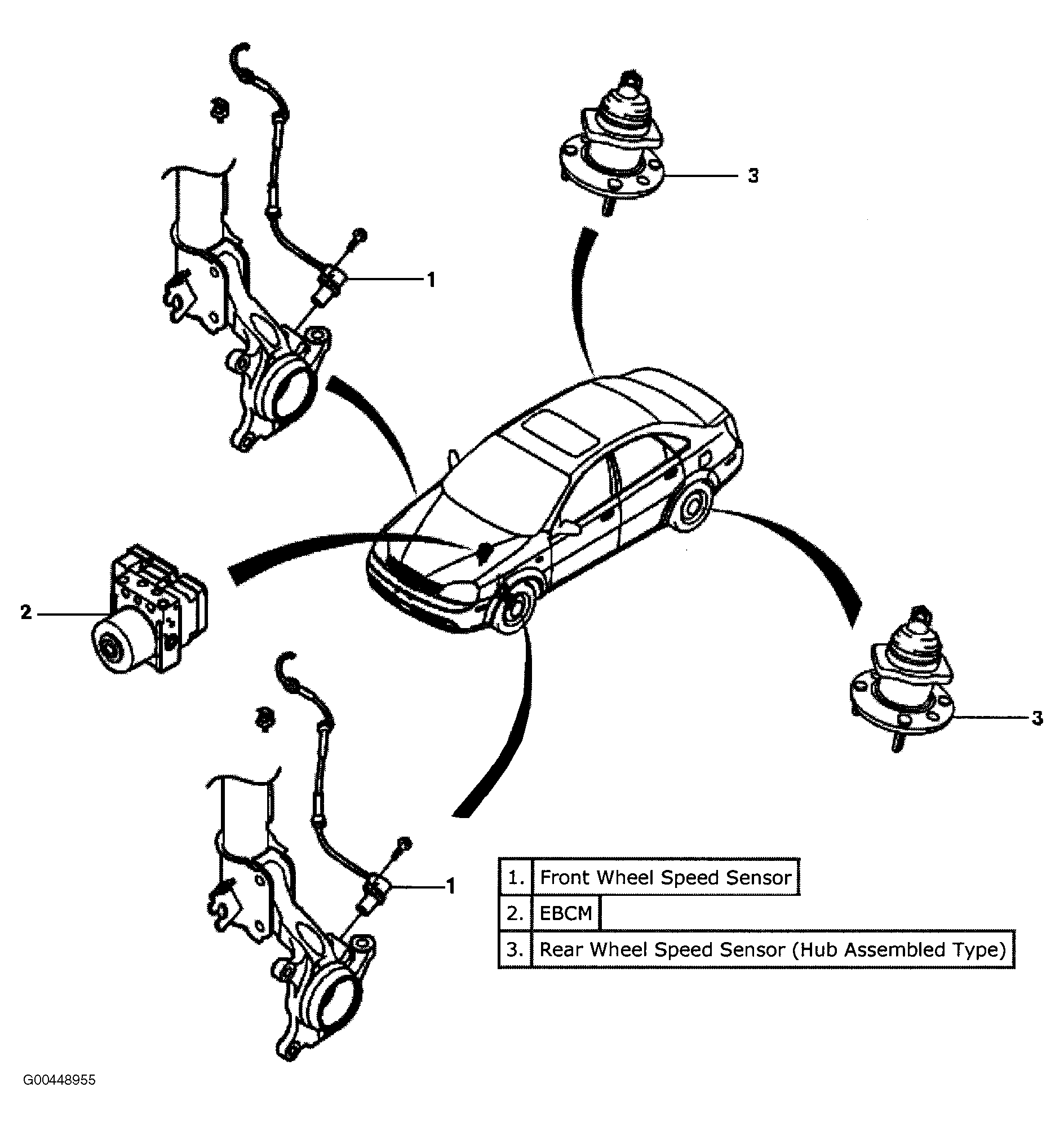

Fig 2: Identifying 2007 ABS / EBD System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
