Split Rear Seatback Removal and Installation: Removal

  1. Lower the rear seatbacks.
  2. Remove the bolts, and the seatback from the hinges.

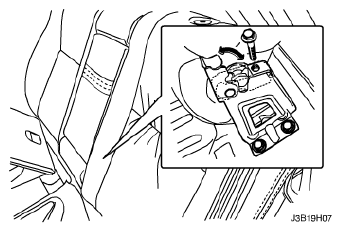

    Fig 1: Identifying Rear Seatback & Bolts
    G04718303Courtesy of SUZUKI OF AMERICA CORP.
