Wiper Switch and Lever Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Remove the upper and the lower steering column cover panel screws.
  3. Remove the upper and the lower steering column cover panels.
    Fig 1: Identifying Upper And Lower Steering Column Cover Panel Screws
    G04717632Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the wiper switch by pushing the tabs on the top and the bottom of the switch housing.
  5. Disconnect the electrical connector from the wiper switch. Disconnect the cruise control connector, if equipped.

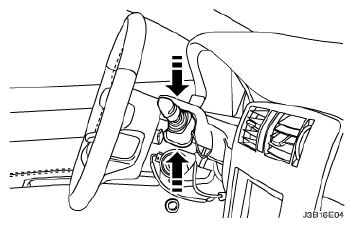

    Fig 2: Disconnecting Electrical Connector From Wiper Switch
    G04717637Courtesy of SUZUKI OF AMERICA CORP.
