For without REAR INTERMITTENT, HATCHBACK Model

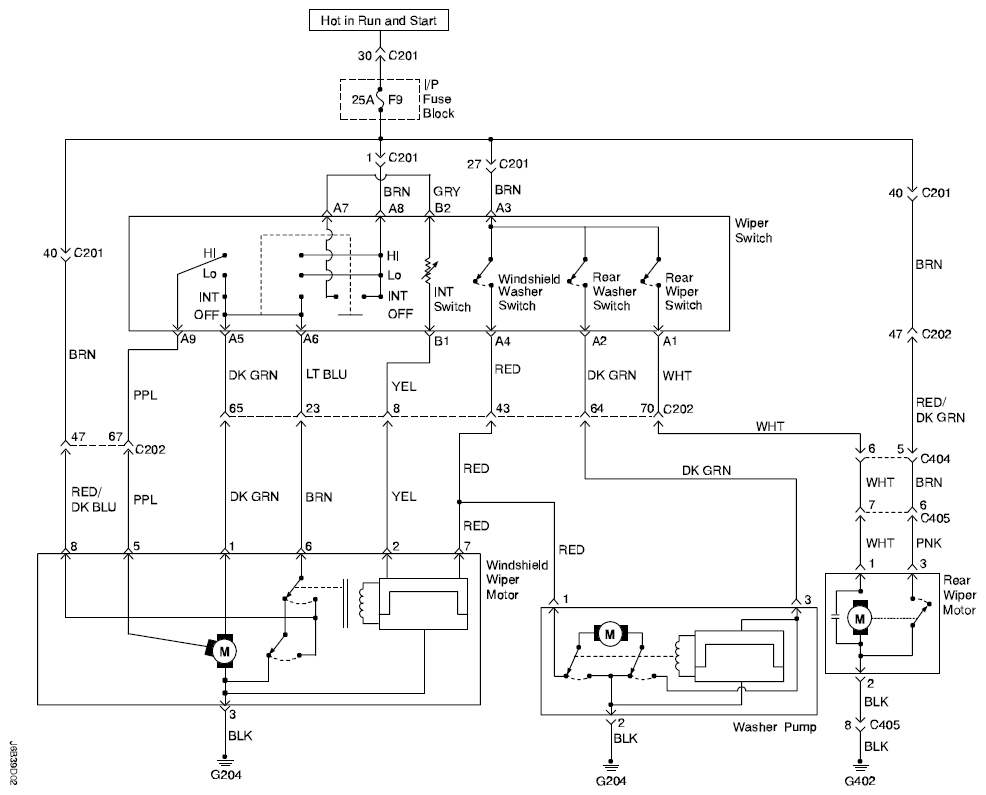

Fig 1: Wipers And Washer System Circuit Wiring Diagram - Without Rear Intermittent, Hatchback Model
G04718158Courtesy of SUZUKI OF AMERICA CORP.
