Windshield Wiper Motor Removal and Installation: Removal
- Disconnect the negative battery cable.
- Remove the left-side portion of the cowl vent grille. Refer to COWL VENT GRILLE REMOVAL AND INSTALLATION
.
- Remove the nut and the washer that secure the wiper arm linkage to the motor drive shaft.
Courtesy of SUZUKI OF AMERICA CORP.
- Pry the wiper arm linkage off the motor drive shaft.

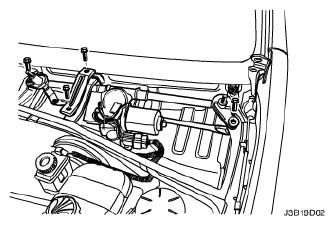

- Remove the nuts.
- Disconnect the electrical connector.
- Remove the bolts and the wiper motor.
Courtesy of SUZUKI OF AMERICA CORP.
