Windshield Wiper Arm Removal and Installation: Installation

  1. Install the wiper arm.
  2. Secure the wiper arm with the nut.

    Tighten:

    Tighten the wiper arm nut to 22 N.m (16 lb-ft).

  3. Install the wiper arm nut cap, if necessary.
  4. Close the hood.

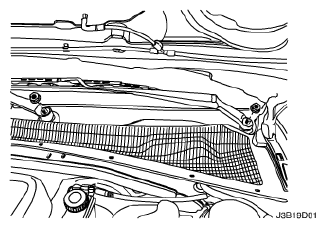

    Fig 1: Identifying Windshield Wiper Arm
    G04718162Courtesy of SUZUKI OF AMERICA CORP.
