Tail Lamps Removal and Installation (For NOTCHBACK Model): Installation

  1. Install the bulb(s).
  2. Install the lamp assembly with the nuts.

    Tighten:

    Tighten the rear combination lamp assembly nuts to 4 N.m (35 lb-in).

  3. Connect the negative battery cable.

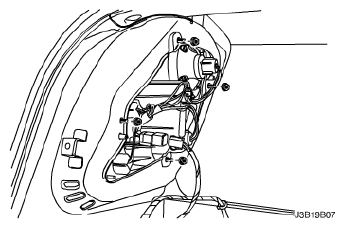

    Fig 1: Identifying Tail Lamp Assembly & Nuts (Notchback Model)
    G04718072Courtesy of SUZUKI OF AMERICA CORP.
