Extension Lamps Removal and Installation (For HATCHBACK Model ONLY): Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

Install the extension lamp assembly with the nuts.
Tighten:

Tighten the extension lamp assembly nuts to 3 N.m (27 lb-in).
Connect the electrical connector.
Install the extension lamp access cover.
Connect the negative battery cable.

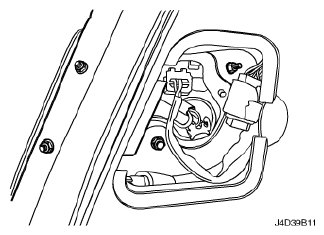

Fig 1: Identifying Extension Lamps (Hatchback Model)
Courtesy of SUZUKI OF AMERICA CORP.
