Shift Lock Control Circuit Wiring Diagram

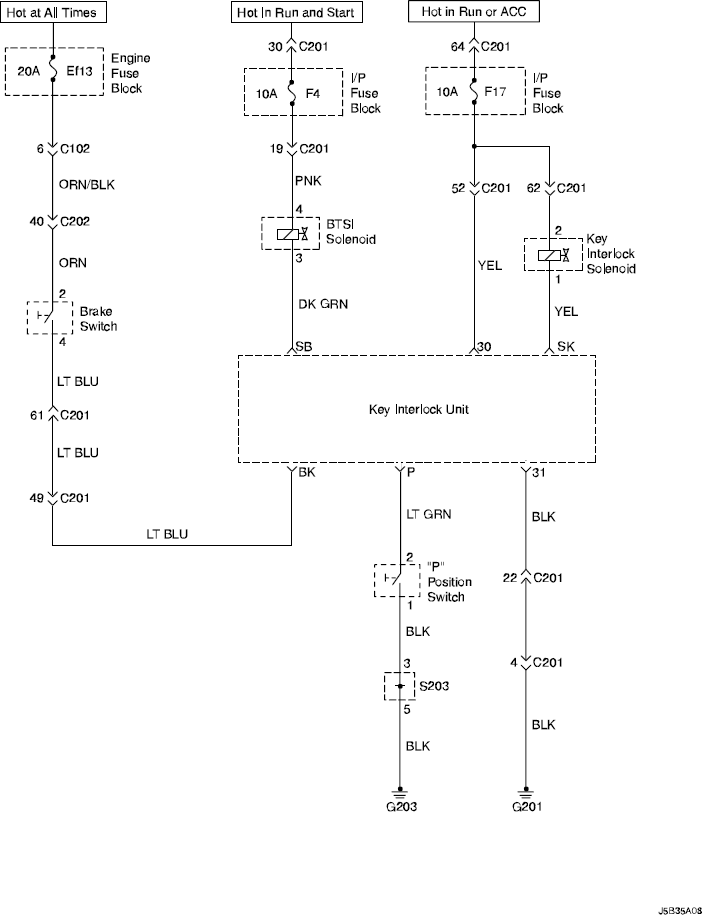

Fig 1: Shift Lock Control Circuit Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
