Transaxle Assembly Removal and Installation: Removal

Tools Required:

DW110-060 Engine Support Fixture

DW260-010 Transaxle Support Fixture

1. Disconnect the negative battery cable.
2. Position the select lever park position.
3. Remove the battery. Refer to BATTERY AND BATTERY TRAY REMOVAL AND INSTALLATION .
4. Install the engine support fixture DW110-060.
   Fig 1: Identifying Engine Support Fixture DW110-060

   Courtesy of SUZUKI OF AMERICA CORP.
5. Disconnect the transaxle wiring harness from the transaxle.
6. Disconnect the park/neutral position switch electrical connector.
   Fig 2: Identifying Park/Neutral Position Switch Electrical Connector

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove the clips from the shift control cable and disconnect the shift control cable from the transaxle.
   Fig 3: Identifying Shift Control Cable

   Courtesy of SUZUKI OF AMERICA CORP.
8. Remove the upper transaxle-to-engine bolts.
   Fig 4: Identifying Upper Transaxle-To-Engine Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
9. Remove the left transaxle mounting bracket. Refer to Left Transaxle Mounting Bracket Removal and Installation .
   Fig 5: Identifying Left Transaxle Mounting Bracket Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
10. Raise and suitably support the vehicle.
11. Drain the transaxle fluid.
12. Remove the oil cooler pipes from the transaxle. Refer to Oil Cooler Pipes/Hoses Removal and Installation .
    Fig 6: Identifying Oil Cooler Pipe

    Courtesy of SUZUKI OF AMERICA CORP.
13. Remove the drive axle. Refer to DRIVE AXLE ASSEMBLY REMOVAL AND INSTALLATION .
14. Remove the starter motor. Refer to DIAGNOSTIC AIDS .
15. Remove the torque converter bolts.
    Fig 7: Identifying Torque Converter Bolts

    Courtesy of SUZUKI OF AMERICA CORP.
16. Support the transaxle.

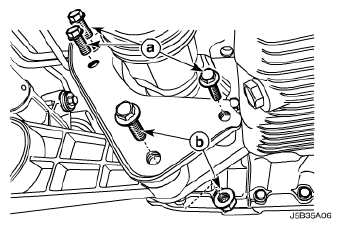

17. Remove the rear transaxle mounting bracket bolts (a) and damping block connection bolt and nut (b).
    Fig 8: Identifying Rear Transaxle Mounting Bracket Bolts

    Courtesy of SUZUKI OF AMERICA CORP.

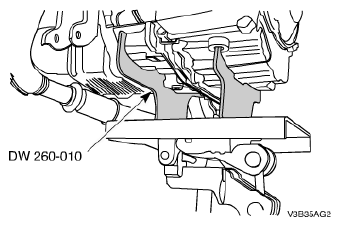

18. Support the transaxle assembly using the transaxle support fixture DW260-010.
    Fig 9: Identifying Transaxle Support Fixture DW260-010

    Courtesy of SUZUKI OF AMERICA CORP.

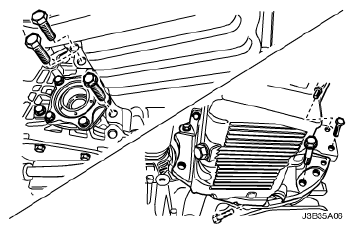

19. Remove the lower engine-to-transaxle bolts.
    Fig 10: Identifying Lower Engine-To-Transaxle Bolts

    Courtesy of SUZUKI OF AMERICA CORP.
20. Remove the transaxle assembly.
    Fig 11: Identifying Transaxle Support Fixture DW260-010

    Courtesy of SUZUKI OF AMERICA CORP.
