Rear Cover Disassembly and Assembly

  1. Remove the valve body assembly. Refer to Valve Body Disassembly and Assembly .
  2. Pull out sealing sleeve (brake C) with a kind of nail.
  3. Turn transaxle by 90°.

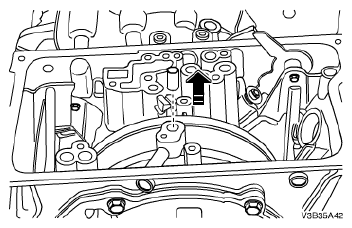

    Fig 1: Pulling Out Sealing Sleeve
    G04717317Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the rear cover bolts.
  5. Hit the rear cover rightly.
  6. Remove the cover.
  7. Installation should follow the removal procedure in the reverse order.
    Fig 2: Removing Rear Cover Bolts
    G04717318Courtesy of SUZUKI OF AMERICA CORP.
