Oil Cooler Pipes/Hoses Removal and Installation: Installation

Install the oil cooler inlet pipe assembly and the bolts.
Tighten:

Tighten the oil cooler inlet pipe bolts to 35 N.m (26 lb-ft).

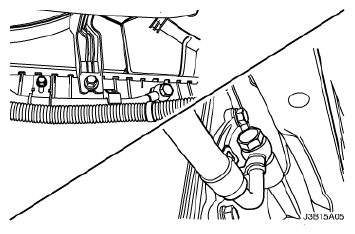

Fig 1: Identifying Oil Cooler Inlet Pipe Assembly Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the oil cooler outlet pipe assembly and the bolts.
Tighten:

Tighten the oil cooler outlet pipe bolts to 35 N.m (26 lb-ft).
Refill the transaxle fluid. Refer to Transaxle Fluid Level Checking Procedure .
Install the engine under cover. Refer to ENGINE UNDER COVERS REMOVAL AND INSTALLATION .
Connect the negative battery cable.

Fig 2: Identifying Oil Cooler Inlet Pipe Assembly Bolts
Courtesy of SUZUKI OF AMERICA CORP.
