Input Shaft & Shift Gear Components

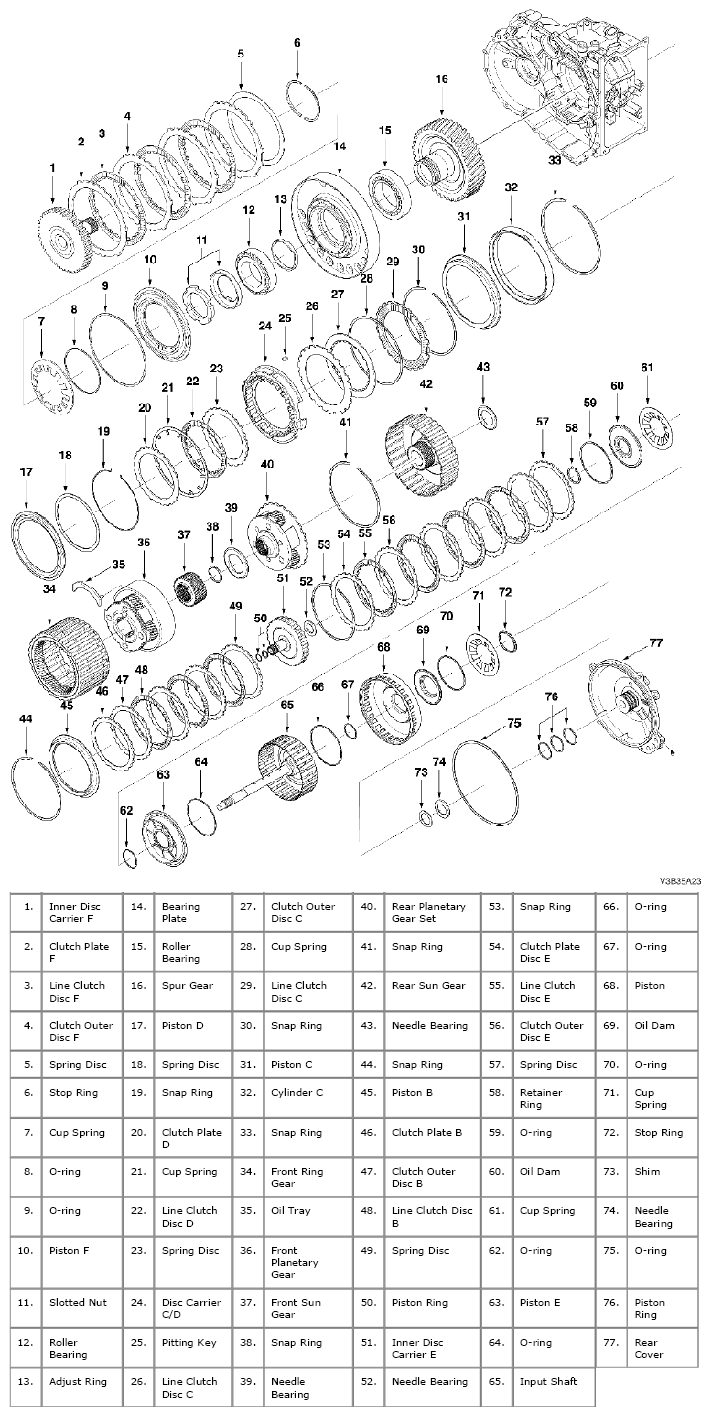

Fig 1: Exploded View Of Input Shaft & Shift Gear Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
