Bearing Plate (with Spur Gear) Assembly Disassembly and Assembly
- Remove the piston F. Refer to Brake F, Slotted Nut Disassembly and Assembly and Installation .

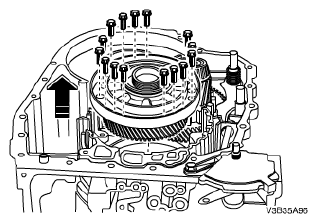

- Remove the bearing plate bolts and bearing plate.
- Installation should follow the removal procedure in the reverse order.
