DTC P0303: Cylinder 3 Misfire Detected
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0303: Cylinder 3 Misfire Detected: Notes

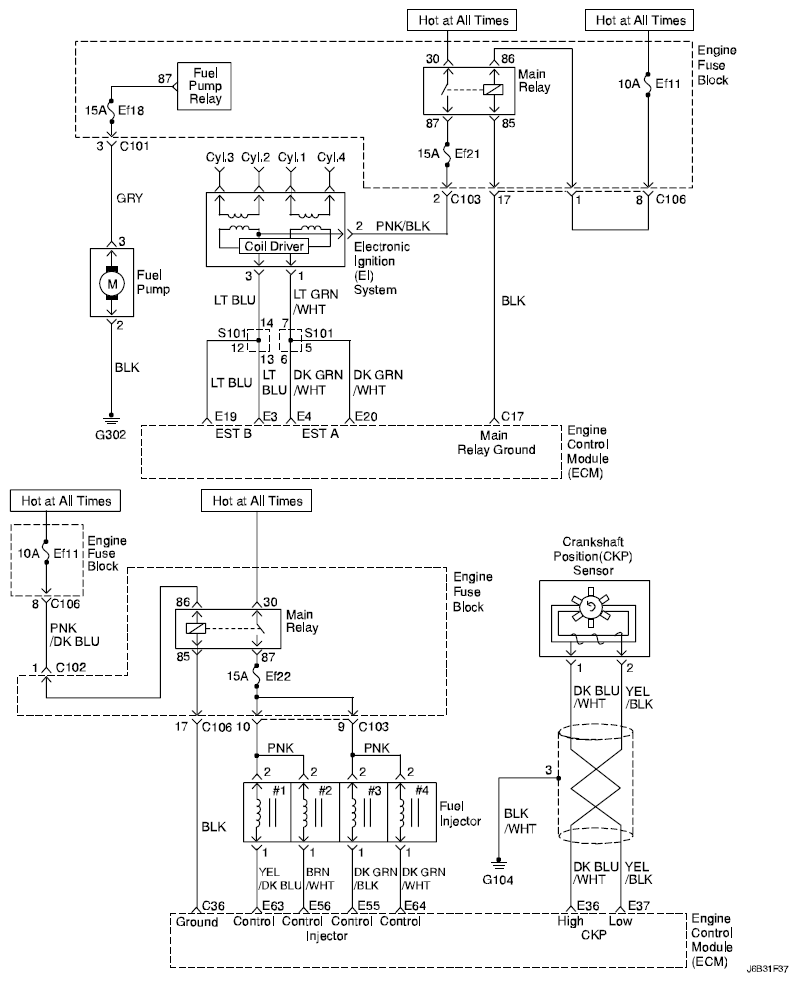

Fig 1: Cylinder Misfire Detected - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
