For NOTCHBACK and STATION WAGON Model

Unit: mm (in.)

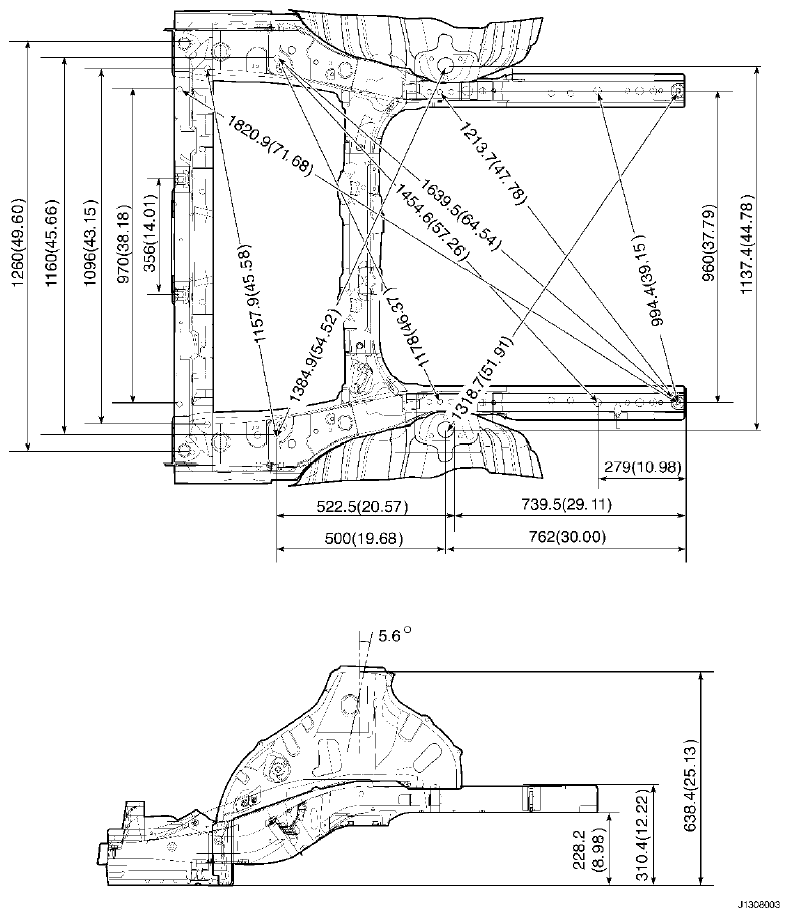

Fig 1: Identifying Under Body Dimension Chart - Rear Frame (Notchback And Station Wagon Model)
G04718502Courtesy of SUZUKI OF AMERICA CORP.
